RD-181 engine for the Antares rocket

In 2014, the Russian rocket industry reached a deal with a US company to supply a modified version of the RD-191 engine. The RD-191 engine was originally developed for Russia's new-generation Angara family of rockets and was already modified under name RD-151 to propel the South-Korean KSLV-1 launcher. The US-Russian agreement put another upgrade of the engine, designated RD-181, on the first stage of the Antares rocket developed by the Orbital Sciences Corporation, OSC, based in the United States. (The OSC has since merged with ATK Inc. and now goes by the name of Orbital ATK Inc.)

silo

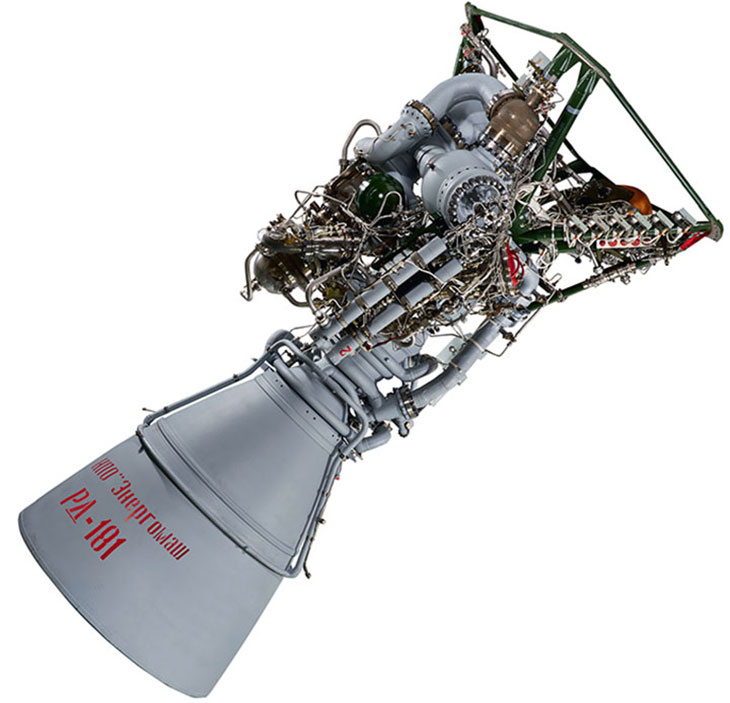

RD-181 engine. Credit: NPO Energomash

From the publisher: Pace of our development depends primarily on the level of support from our readers!

Donate

Multitalented RD-191

Developed at NPO Energomash in Moscow, the RD-191 engine was based on the RD-170 engine family originally intended for the Energia super-heavy rocket and for the Zenit launch vehicle. While the RD-170 used four combustion chambers, the developers essentially split it into four parts to form a one-chamber engine for the URM-1 module of the Angara rocket.

One version of the RD-191 engine, designated RD-193, was intended for the Soyuz-2-1v rocket and a similar upgrade, known as RD-181, was proposed for the US Antares rocket during 2010s. Unlike its two siblings, RD-193 would not have a gimbal capability, relying instead on the special steering thrusters.

According to Roskosmos, RD-181 could be throttled in flight from 100 to 47 percent of its thrust and gimbaled up to five degrees. According to NASA, RD-181 also features a variable mixture ratio for controlling relative flow rates of oxidizer and fuel.

In September 2013, KB Yuzhnoe also proposed its RD-810 engine for the Antares. The company promised to begin deliveries of the engine in 5.5 years at a price tug of $500 million. However, Orbital chose the RD-181 engine for the project.

On Jan. 16, 2015, RKK Energia, parent company of NPO Energomash, announced that it had reached an agreement with the American company Orbital ATK Inc. on the export of RD-181 engines for the first stage of the Antares rocket, thus replacing the NK-33 engines previously used on the launcher. The contract, worth around $1 billion, was actually signed and ratified by the Russian government in December 2014. According to the document, a total of 60 RD-181 engines would be delivered to the US beginning in June 2015.

Development history

RD-181

According to Roskosmos, the design documentation for the RD-181 engine was issued back in 2014, apparently in anticipation of the upcoming sale to the US and it was test-fired for the first time at the beginning of 2015.

On May 7, 2015, RD-181 successfully completed its seventh and final firing test intended to certify it for the use on the Antares rocket. At the time, NPO Energomash reconfirmed that the first batch of RD-181 engines had been in production and would be delivered in June. According to the company, the engine was developed in a record-breaking short period of time not exceeding six months.

On March 16, 2018, NPO Energomash announced conducting another planned testing of the RD-181 engine. According to Deputy Chief of the NIK-751 test facility Sergei Kuznetsov, the firing went as planned without any glitches and the test program was completed fully.

During 2019, NPO Energomash transferred two batches of RD-181 engines to its American customers, Roskosmos said. The second batch delivered in December 2019 included four engines.

Known specifications of the RD-181 engine (NASA):

Thrust at sea level 1,922 kilonewtons
Mass 2,350 kilograms
Length 3.7 meters





Read (and see) much more about Angara rockets and many other space projects in Russia
in a richly illustrated, large-format glossy edition:

Book



Bookmark and Share


The article and photography by Anatoly Zak; Last update: December 10, 2019

All rights reserved



Book



assembled

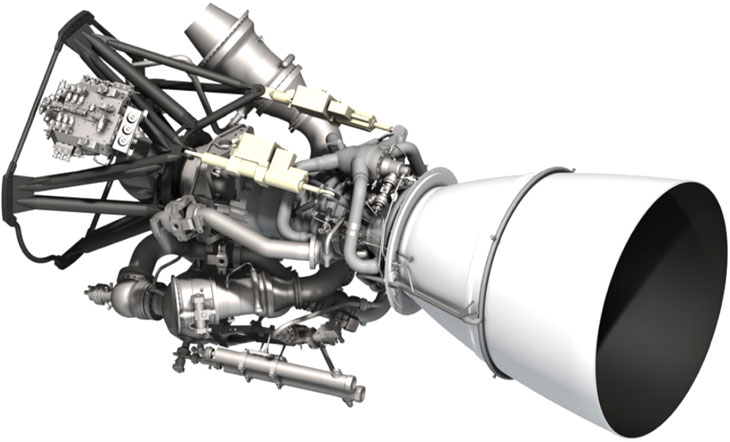

One of the first workable RD-191 engines, which became a basis for RD-181. Credit: NPO Energomash


test

RD-181 is being prepared for tests. Credit: NPO Energomash


install

Two RD-181 engines that arrived in July are being integrated with the Antares first stage air frame at the Wallops Island, Virginia Horizontal Integration Facility (HIF). A “hot fire” test on Pad 0A is scheduled for late 2015 or early 2016.
