The TKS transport ship

During the 1960s and 1970s, a design bureau led by Vladimir Chelomei developed an enduring series of manned transport ships, designated TKS and intended to resupply the Almaz space station. In the 1980s, the design of the craft became a base for the add-on modules of the Salyut and Mir space station and in the 1998, the same craft served as a founding stone of the International Space Station.


TKS

Technical description

The TKS spacecraft with a total mass of 20 tons, consisted of two elements:

  • Functional Cargo Block, FGB, with the industrial designation 11F77;
  • A three-seat Reentry Capsule, VA, with the industrial designation 11F74.

The TKS was designed to be launched on a Proton rocket and carry a three-person crew, along with up to eight small film return capsules and other supplies for the Almaz station. The TKS was equipped with the I11F77 propulsion system and eight externally attached cylindrical propellant tanks.

The TKS spacecraft had a length of 13 meters and a pressurized volume of 49.88 cubical meters.

Vladimir Chelomei delegated the development of the TKS spacecraft to the branch of his design bureau, known as KB Salyut located in the Moscow district of Fili. The development of the VA reentry capsule was conducted by Chelomei's "home" bureau in Reutov, east of Moscow.

The VA capsule could be attached either to the FGB module of the TKS and or to the front section of the Almaz station or to both. In the latter case, the Almaz station could be launched manned with the crew riding to orbit inside the VA capsule. The crew members would be able to exit and enter the VA capsule in orbit via a special hatch in the thermal protective shield of the craft.

Upon separation from the FGB craft or from the Almaz station, the VA capsule would be able to conduct an autonomous flight of up to 31 hours long. Along with the three-member crew, the VA capsule could apparently return as much as 50 kilograms of cargo. (49)

The VA capsule was equipped with an 11D841 solid-propellant motor, which was intended to propel the emergency escape rocket away from the ship after it would reach safe altitude during the launch. Another solid-propellant motor designated 11D848 was providing soft landing of the VA capsule. Both engines were developed at MKB Iskra.

Development of the TKS

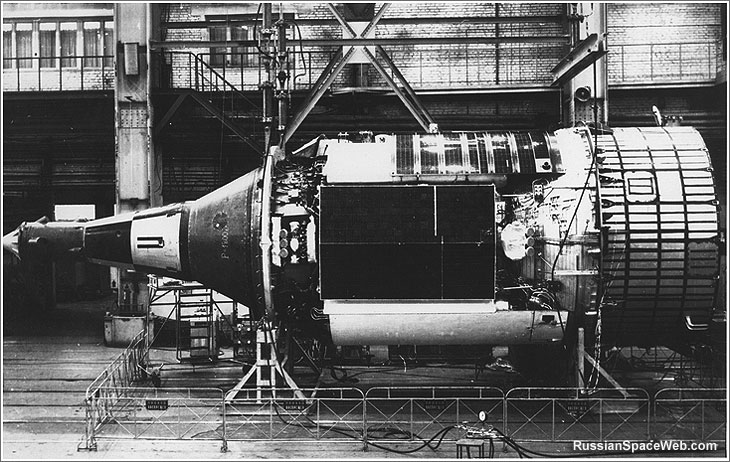

testing

The preliminary design of the TKS spacecraft was completed at KB Salyut under the direction of Ya. B. Nodelman in 1969. (134)

To support the TKS program, the NIIKhIMMash center in Zagorsk, north-east of Moscow, built test facilities to simulate the jettisoning of the payload fairing, live firing of the propulsion system and for vacuum testing. The craft life-support system and thermal control were tested at the aviation research center in Chkalovo, north-east of Moscow. The facilities for testing the docking system and the process of separation between the FGB and the VA reentry capsule were deployed at the Khrunichev production plant in Fili.

In accordance with the timeline approved by the Minister of General Machine Building, MOM, Afanasiev, on June 15, 1972, the construction of the TKS spacecraft was to have started in the fourth quarter of 1972. (134)

In order to accelerate the man-rating of the TKS and VA spacecraft, the developers made the decision to launch two unmanned VA reentry capsules in every test flight. The dual launch of reentry capsules would maximize the test data gathered during each reentry and landing. Such test flights were conducted between 1976 and 1978.

In addition, so-called "autonomous launches" of the VA capsules, aimed to test its emergency escape system, were conducted from Site 51 in Baikonur on a ballistic trajectory from 1974 to 1977. At least one such test ended in failure, according to the memoirs of a program participant. (100)

In December 1978, the Minister of General Machine Building approved the formation of a special group of six cosmonauts within Chelomei's NPO Mash, specifically for manned missions onboard the TKS spacecraft.



The TKS spacecraft technical specifications: (49)

Industrial designation
11F72
Crew size
3 people
Launch mass
21,620 kg
Mass in orbit
17,510 kg
Payload mass to orbit
12,600 kg
Mass of onboard propellant
3,822 kg
Length
13 meters (17.51 meters with VA capsule
Diameter
4.15 meters
Solar arrays size
40 square meters
Onboard power supply
2,400 Watt



The VA capsule technical specifications: (49)

Industrial designation
11F74
Crew size
3 people
Mass at launch (with emergency escape system)
7,200 (49) - 7,300 kg
Mass in orbit
4,250 kg
Mass on landing
3,800 kg

Payload mass, including

  • Onboard systems
  • The crew (in spacesuits)

2,135 kg

  • 1,880 kg
  • 255 kg
1,880 kg (49)
Total internal volume
8.37 cubical meters (49)
Habitable volume
4.56 cubical meters (49)
Length
3.64 meters
Diameter
2.79 meters
Emergency escape tower discard solid propellant motor
11D841
Soft-landing solid propellant motor
11D848



Overview of TKS missions and TKS-based modules:

Official name
Type
Launch date
VA capsule landing date
FGB deorbit date Notes
Kosmos-881, 882
Two VA
1976 Dec. 15
-
Orbital test of VA
Kosmos-929
TKS/VA
1977 July 17
1977 Aug. 16
1978 Feb. 3
First TKS test.
no name
Two VA
1977 Aug. 5
-
-
LV failure. Suborbital test of VA
Kosmos-997, 998
Two VA
1978 March 30
-
-
Orbital test of VA
Kosmos-1100, 1101
Two VA
1979 May 23
-
-
Orbital test of VA
Kosmos-1267
TKS
1981 April 25
1981 May 24
1982 July 29*
Docked to Salyut-6 on June 19, 1981.
Kosmos-1443
TKS
1983 March 2
1983 Aug. 23
1983 Sept. 19
Docked to Salyut-7 from March 10 to Aug. 14.
Kosmos-1686
TKS
1985 Sept. 27
VA not included
1991 Feb. 7
Docked to Salyut-7 on Oct. 2, 1985; deorbited with the station
TKS/Kvant
1987 March 30
VA not included
2001 March 23**
Docked to Mir
Polyus/Skif
TKS/Polyus
1987 May 15
VA not included
Energia test launch; Payload failed to reach orbit;
Mir module
1989 Nov. 26
VA not included
2001 March 23**
Docked to Mir
Mir module
1990 May 31
VA not included
2001 March 23**
Docked to Mir
Mir module
1995 May 20
VA not included
2001 March 23**
Docked to Mir
Mir module
1996 April 23
VA not included
2001 March 23**
Docked to Mir
ISS module
1998 Nov. 20
VA not included
-
Docked to ISS
MLM/FGB-2/Nauka
ISS module
VA not included
-
Intended to dock to ISS

*Deorbited along with the Salyut-6 space station

**Deorbited along with the Mir space station




insider content



Page author: Anatoly Zak

Last update: June 26, 2020

All rights reserved







insider content

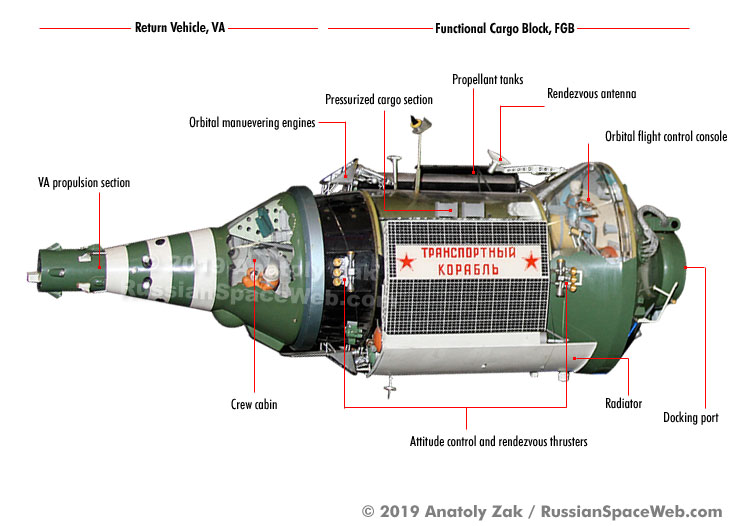

The TKS spacecraft in orbit. Copyright © 2002 Anatoly Zak


Artist rendering of the Almaz space station in full configuration docked with two TKS spacecraft. Credit: NPO Mash


telescope

A possible depiction of the TKS spacecraft equipped with a large radio telescope.


The TKS spacecraft. Credit: NPO Mash


A return craft ("Vozvrashaemiy Apparat," VA) of the TKS transport ship shown in pre-launch configuration. A parachute section and emergency escape tower top the landing capsule. Copyright © 2002 Anatoly Zak


This reusable reentry capsule flew three missions: as Kosmos--881 in 1976, as Kosmos--997 in 1978 and an unannounced suborbital flight in 1977. Copyright © 2002 Anatoly Zak


The reentry capsule of the TKS spacecraft. Copyright © 2002 Anatoly Zak


The control panel inside the reentry capsule of the TKS spacecraft. Copyright © 2002 Anatoly Zak


The seat recliners inside the reentry capsule of the TKS spacecraft. Copyright © 2002 Anatoly Zak


An NPO specialist demonstrates a latching mechanism on the interior side of the entrance hatch of the VA capsule. Copyright © 2002 Anatoly Zak


The exterior side of the entrance hatch of the VA capsule. Copyright © 2002 Anatoly Zak


A special hatch in the heat shield of the VA capsule connected the craft with the rest of the TKS spacecraft (left). Copyright © 2002 Anatoly Zak


An engineer demonstrates the process of opening the hatch in the TKS spacecraft. Copyright © 2002 Anatoly Zak


The attitude control system for the return vehicle of the TKS spacecraft. Copyright © 2002 Anatoly Zak


A parachute assembly used in the reentry capsule of the TKS spacecraft. Copyright © 2002 Anatoly Zak

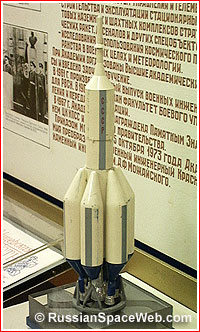

A scale model of the TKS spacecraft and the UR-500MK rocket, which was to use oxygen and kerosene propellant. Copyright © 2001 Anatoly Zak
