Russia's another piloted rocket detailed

In 2017, Russian space officials dropped plans to launch the next-generation spacecraft on the modified version of the Angara-5 rocket and instead opted for the yet-to-be developed Soyuz-5 booster recently conceived within the Feniks and Sunkar projects.

Bookmark and Share


sunkar

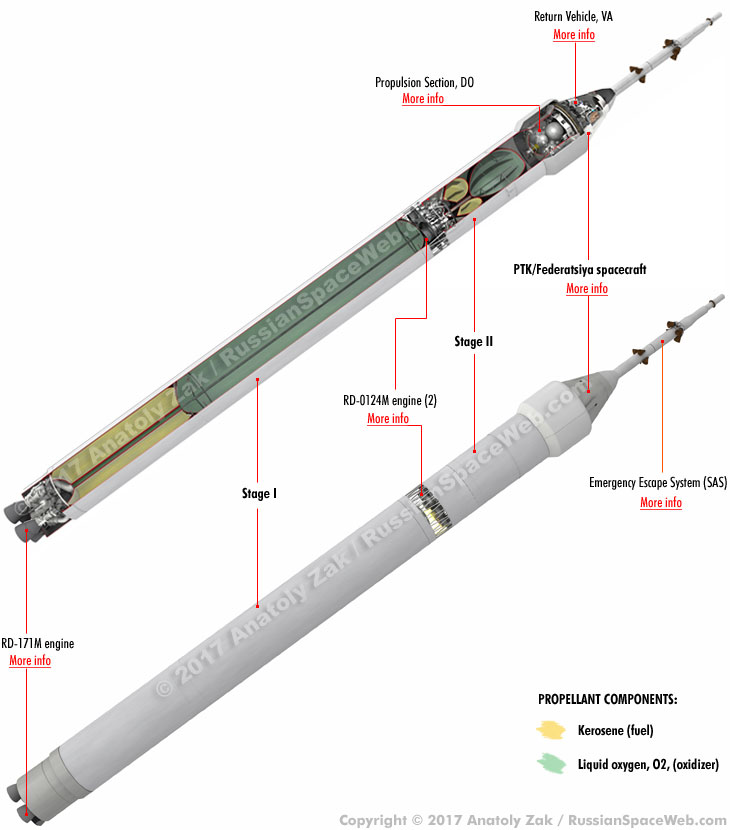

A concept of the Soyuz-5 rocket with the PTK Federatsiya spacecraft as envisioned at RKK Energia in 2017.

From the publisher: Pace of our development depends primarily on the level of support from our readers!
Donate

Sunkar/Soyuz-5 gets a role in human space flight

In April 2017, the head of RKK Energia Vladimir Solntsev told the official TASS news agency that the Sunkar rocket would be a preferable launch vehicle for the PTK Federatsiya new-generation transport spacecraft to the Angara-5P rocket due to the lower cost of the former. According to Solntsev, the Sunkar would also be cheaper than the Ukraine's highly advanced Zenit rocket and the American brand-new Falcon-9 rocket. The Sunkar's launches with the PTK spacecraft would be comparable in price to that of the Soyuz-MS spacecraft, Solntsev promised. Speaking at the St. Petersburg economic forum on June 1, 2017, the Head of Roskosmos Igor Komarov estimated that the Feniks project, which encompassed the development of the Sunkar rocket, would allow reducing the lowest price per launch from the current $70 million to $55 million.

Although the Sunkar was first conceived as a joint Russian-Kazakh vehicle aimed at the commercial satellite market, during 2017, the rocket's newly acquired role in the human space flight and other applications in the Russian space program, prompted the Kremlin to re-christen the future vehicle Soyuz-5. This name change caused some confusion at home and abroad because RKTs Progress in Samara, the developer of the Soyuz rocket family, had previously applied the Soyuz-5 designation to a prospective series of launchers burning methane propellant, which also vied for funding within the Feniks project.

On May 22, 2017, President Putin endorsed a politically sensitive proposal from Roskosmos to base the next-generation manned spacecraft, PTK Federatsiya, in Baikonur rather than in Vostochny, for the ship's initial launches which would now switch from Angara-5P to Soyuz-5.

In July of the same year, Deputy Prime Minister Dmitry Rogozin promised to complete the development of the Soyuz-5 (formerly Sunkar) rocket in 2021. Its development would be funded through the Feniks program. According to Rogozin, RKTs Progress would serve as the prime contractor in the program.

However, as it transpired later, on July 28, 2017, the Russian government had issued a decision No. 1638r, which named RKK Energia as a prime contractor in the development of the new medium-class booster. Less than a month later, on August 22, Roskosmos awarded RKK Energia a contract No. 351-8502A/17/156 to develop a preliminary design of the Soyuz-5 launch vehicle by March 31, 2018.

According to the newly drafted timeline, beginning in 2022, the Soyuz-5 would be used to launch the unmanned test version of the PTK Federatsiya spacecraft, as well as future modules for the Russian segment of the ISS. The new rocket would have to be certified (or "man-rated") for the first launch with a crew in 2024.

The PTK Federatsiya project previously relied on the man-rated version of the Angara-5 rocket, after the ship's originally proposed launcher -- Rus-M -- had been canceled in 2011 while still on the drawing board.

Mass specifications and launch scenario

According to available data from RKK Energia, during a typical mission, the Soyuz-5 rocket will initially insert the PTK Federatsiya spacecraft into a 200 by 135-kilometer orbit with an inclination 51.7 degrees. That inclination matches the latitude of Russia's new spaceport in Vostochny, however it is not expected to have a launch facility compatible with the Soyuz-5 rocket until the second half of the 2020s. As a result, all early missions of the Soyuz-5/Sunkar rockets had to originate from the refurbished Zenit launch complex in Baikonur.

After reaching its initial elliptical orbit, the Federatsiya spacecraft will fire its own propulsion system at apogee to make it circular at an altitude of 200 kilometers. The estimated propellant consumption for this first maneuver is expected to reduce the mass of the spacecraft from 16 tons to 15.4 tons.

Once in its circular orbit, the PTK spacecraft would be able to conduct either an autonomous orbital flight or to maneuver still higher to link up with an orbital tug or an orbiting space station. The Federatsiya would still need a much larger rocket than Soyuz-5 to go anywhere beyond low Earth orbit, which remains the ultimate goal of the PTK project.

Russia begins active work on Soyuz-5 in 2017

On August 11, 2017, RKK Energia officially confirmed that it had been working on the preliminary design of the Soyuz-5 launch vehicle including its man-rated version in cooperation with RKTs Progress and the TsENKI launch infrastructure organization, among other subcontractors.



Known specifications of the man-rated Soyuz-5 launch vehicle as compared to the original Sunkar concept:

General specifications
Man-rated Soyuz-5
Liftoff mass
534.3 tons
520 tons
Number of stages
2
3
Payload to a 200-kilometer orbit with an inclination 51.6 degrees from Baikonur
15.4 tons***
17.0 tons
Total length of the launch vehicle
65.39 meters
60.2 meters
Main diameter (two booster stages)
4.1 meters
4.1 meters
Oxidizer (all stages)
Liquid oxygen
Liquid oxygen
Fuel (all stages)
Kerosene (naftil)
RG-1 (kerosene)
Payload to geostationary transfer orbit, GTO
n/a
5.0 tons
Payload to geostationary orbit, GSO
n/a
2.5 tons
Price per launch
?
$55 million**
Emergency Escape System, SAS, mass
4.1 tons
n/a
STAGE I
-
Stage I length
36.23 meters
37.14 meters
Stage I propellant mass
400 tons
398.0 tons
Stage I structure mass
-
30.5 tons
Stage I propulsion system
One RD-171MV
One RD-171M or two RD-180
Stage I thrust
740 tons at sea level; 806.4 tons in vacuum
740 tons at sea level; 806.4 tons in vacuum*
Stage I specific impulse at sea level
309.5 seconds
?
Stage I specific impulse in vacuum
337.2 seconds
?
Stage I propellant components mass ratio
2.63
?
STAGE II
-
Stage II length
9.47 meters
7.77 meters
Stage II propellant mass
up to 65 tons
60.0 tons
Stage II structure mass
?
6.5 tons
Stage II propulsion system
Stage II thrust
60.6 tons
60 tons in vacuum
Stage II specific impulse
363 seconds
?
Stage II propellant components mass ratio
2.5
?

*10 percent throttle is available

**Estimate made in 2017

***inclination 51.7 degrees (from Vostochny); 16 tons are inserted into a 200 by 135-kilometer initial orbit



Next chapter: Soyuz-5 development in 2017



Read much more about the history of the Russian space program in a richly illustrated, large-format glossy edition:

Book



Bookmark and Share


The article and illustrations by Anatoly Zak; Last update: November 14, 2020

Page editor: Alain Chabot; Last edit: August 7, 2017

All rights reserved

insider content



Sunkar

Zenit (left) and Sunkar launchers shown to the same scale. Copyright © 2016 Anatoly Zak


ACTS launch

The launch of the PTK spacecraft on the Soyuz-5 booster will closely resemble a liftoff on the Zenit-derived launch vehicle first considered in 2008. Click to enlarge. Copyright © 2008 Anatoly Zak
