PTK Federatsiya approaches experimental phase of development

In 2017, as the work on the replacement to the veteran Soyuz spacecraft had entered its second decade, its developers were preparing to build the first major experimental components of the PTK Federatsiya spacecraft for initial full-scale tests. In the meantime, Roskosmos had made several major changes to the project switching its rocket again, this time, from the Angara-5P to the Soyuz-5. It also meant that the flight testing of the Federatsiya would now originate from Baikonur Cosmodrome in Kazakhstan until the super-heavy rocket would be ready at a new launch pad in Vostochny in Russia. The first launch of the new spacecraft had to be postponed by at least a year to 2022.

Previous chapter: PTK Federatsiya project in 2016

brekadown

Key components of the PTK Federatsiya spacecraft circa 2016 and 2017.


Specifications of the PTK/Federatsiya spacecraft as presented by Roskosmos in September 2017:

Spacecraft mass for lunar missions
20 tons
Crew
4 people
Mass delivered/returned to an Earth-orbiting space station
500/500 kilograms
Mass delivered/returned on a lunar-orbit mission
100/100 kilograms
Autonomous flight duration during a mission to the Earth-orbiting space station
up to 3 days
Autonomous flight duration during a lunar mission
up to 10 days
Landing accuracy
7 kilometers
Pressurized volume
17 cubic meters
Spacecraft length
6.13 meters
Spacecraft maximum diameter
4.47 meters
Solar array span
13.9 meters
Power supply system
3.2 kilowatts
From the publisher: Pace of our development depends primarily on the level of support from our readers!
Donate

Blueprints for Federatsiya are in the works

At the start of 2017, Roskosmos confirmed its previous commitment to spend 57.56 billion rubles on the development of the PTK Federatsiya spacecraft. By that time, RKK Energia, the prime contractor for the project, had began work on the first phase (or LKI-1) of the development contract, known in Russian as OKR, for the new-generation transport spacecraft, PPTK. Roskosmos awarded the contract, No. 351-5620/16/185, to RKK Energia on Nov. 7, 2016.

Within this framework, the company began the development of design documentation for the upper composite of PTK Federatsiya, which would include the spacecraft itself, its emergency escape rocket system, known as RBAS and the payload fairing structure, known as SZB, which would hold the vehicle together and protect it from aerodynamic loads during its initial ascent through the atmosphere.

Also, on June 15, 2017, the amendment No. 13 was signed to a contract No. 47702388027160001410/1000/P, detailing production hardware and facilities for the project. (INSIDER CONTENT)

As of September, the company had completed 2,542 documents of the working design documentation and 3,630 documents were in development out of 6,172 pieces of documentation required by the project.

As the design work spread to the countless systems and subsystems of the spacecraft, RKK Energia issued individual schedules for the major sub-projects comprising the PPTK system. They included the construction of facilities for testing of the spacecraft and its prototypes, the development of the ground diagnostic equipment, the writing of software for onboard avionics, the construction of facilities for testing of the thermal protection system, the autonomous testing of docking ports, the assembly of the spacecraft mockups, the manufacturing of hardware for autonomous testing of the landing gear and the steering mechanisms of the propulsion system.

The work on the Federatsiya also coincided with the continuous effort to integrate increasingly sophisticated computer visualization technologies into the design process. On April 7, RKK Energia announced the opening of the first center in Russia for virtual spacecraft design. According to the company, the facility, equipped with three computer graphics stations and 15 virtual reality glasses, would be used for a multitude of design tasks, including the integration of complex onboard equipment and laying of cables connecting dozens of instruments.

Building prototypes

After a decade on the drawing board, the PTK Federatsiya was reportedly close to appearing in the form of several mockups and prototypes. Also, some major components of the future spacecraft were reported to be entering their testing phase.

As of September 2017, RKK Energia reported to Roskosmos that it had issued 15 out of 16 technical assignments for mockups and experimental units for Federatsiya. The company also produced technical assignments for seven out of 24 experimental units, while the 17 other were still being worked out with subcontractors.

In the meantime, RKK Energia's assembly plant, ZEM, was reported as starting the assembly of special work sites for manufacturing of the body components for the new spacecraft. The factory also began the procurement of the necessary tooling and machinery for the upcoming production.

Staying in Baikonur

Following the crucial decision by Roskosmos on June 7 to shift early missions of the Federatsiya spacecraft from the Angara-5P rocket in Vostochny to the Soyuz-5 rocket based in Baikonur, RKK Energia had to accordingly adjust its plans for the ship's flight testing. On August 21, the company provided Roskosmos with a list of open issues arising from the move to Baikonur.

Obviously, the developers would have to re-adjust the project's cosmonaut training procedures, emergency escape profiles and search and rescue operations for the conditions of launches from Baikonur instead of Vostochny. Although Baikonur has hosted human space flight since the start of the Space Age, it would be the first switch of cosmonaut launches to a drastically new system since the introduction of the Soyuz spacecraft in 1966.

By September 11, RKK Energia had completed its review of the new strategy, which could ensure the first unmanned test launch of the PTK Federatsiya spacecraft on a Soyuz-5 booster from Baikonur in 2022 or one year later than planned a year ago. Provisionally, this timeline was expected to lead to the first piloted mission of the new spacecraft in 2024, also launched on a Soyuz-5 rocket from Baikonur. However the first Russian lunar expeditions would now have to wait until the appearance of the super-heavy rocket in Vostochny at the end of the 2020s or the beginning of the 2030s.

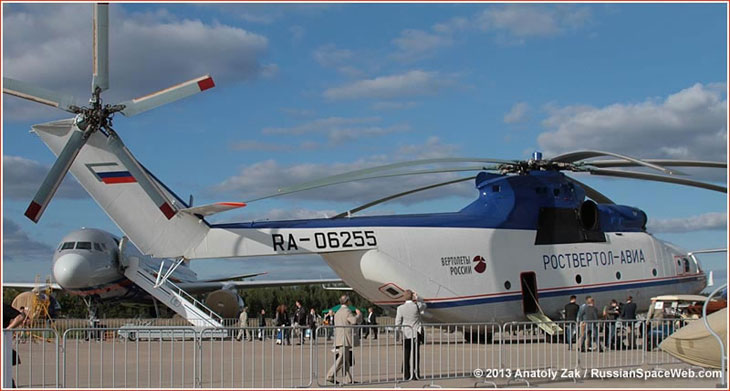

Giant Mi-26 helicopter to be used for PTK Federatsiya drop tests

helicopter

In a major step toward testing full-scale systems for the PTK Federatsiya spacecraft, Russian engineers began preparations for aircraft drop tests of the ship's Return Vehicle, VA. A life-size mockup of the cone-shaped capsule was expected to be lifted by Russia's heavy Mi-26 helicopter before being dropped in mid-air in order to try out various components of the landing system for the future spacecraft.

During 2017, RKK Energia developed the drop test program in cooperation with NII Parashutostroeniya, the nation's prime developer of parachute systems for the Ministry of Defense and Roskosmos. One drop test of the prototype parachute system with a simulated cargo was made on September 14. During the same month, engineers were also completing the planning of the tests with the Mil MVZ, which builds Russia's Mi helicopter series, including the Mi-26, the largest serially produced vehicle in its class. The finalized test program was expected to be approved by Roskosmos and the Ministry of Defense.



Next page: PTK development in 2018 (Insider Content)

The article and graphics by Anatoly Zak unless stated otherwise; Last update: November 2, 2023

Page editor: Alain Chabot; Last edit: November 14, 2017

All rights reserved



insider content



Bryukhanov

A leading engineer at RKK Energia Nikolai Bryukhanov (left) tries out a virtual reality model of Federatsiya's command module interior using the new computerized design system introduced by the company in April 2017. Click to enlarge. Credit: RKK Energia


Solntsev

Designer General at RKK Energia Vladimir Solntsev demonstrates a virtual copy of the Federatsiya's command module with the company new computerized design system introduced in April 2017. Click to enlarge. Credit: RKK Energia


ACTS launch

The launch of the PTK spacecraft on the Soyuz-5 booster will closely resemble a liftoff on the Zenit-derived launch vehicle first considered in 2008. Click to enlarge. Copyright © 2008 Anatoly Zak


VA

Structural components of the Command Module for the PTK Federatsiya spacecraft. Credit: Tekhnomash
