The ultimate Proton-M-Plus

The Proton-M-Plus (a.k.a. Proton-M+) will complete Russia's commercial workhorse rocket family, carrying the largest and heaviest payloads assigned to the booster. Its most recognizable feature will be the bulbous payload fairing protecting the payload during the initial ascent.

Bookmark and Share

Proton

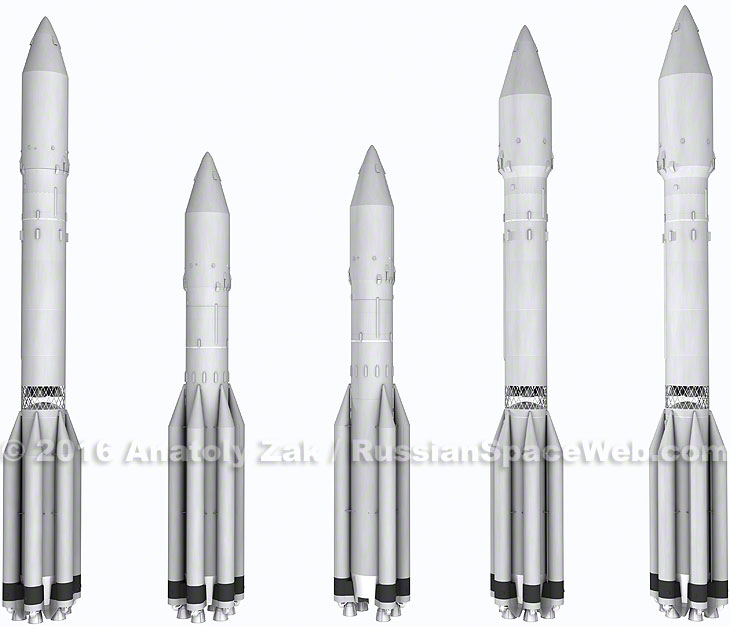

Russian workhorse rocket family (left to right): Proton-M, Proton-Medium, Proton-Light and a pair of Proton-M+ variants with two types of 5-meter payload fairings, as it was envisioned in 2016.

From the publisher: Pace of our development depends primarily on the level of support from our readers!
Donate

Proton-M-Plus concept

Plans to develop the Proton-M-Plus variant emerged in 2016, alongside the Proton-Light and Proton-Medium concepts. Proton-M-Plus will be able boost payload mass delivered to the geostationary orbit up to seven tons. The rocket could also feature two types of enlarged payload fairings reaching 5.1 meters in diameter and made out of metal rather than composite materials. They would be used to accommodate the largest payloads, weighing as much as seven tons, won by the Proton fleet, including the so-called High-Throughput Satellites, HTS, delivering broadband communications. The new fairing could also be used to deliver dual payloads into the geostationary orbit or clusters of multiple satellites into the low Earth's orbit.

On March 7, 2017, the International Launch Services, ILS, which markets Proton to commercial customers, announced that GKNPTs Khrunichev had completed its feasibility study initiated in 2016 on the use of 5-meter fairing. ILS promised to make the enlarged fairing available on Proton-M and on Proton-Medium variants in the first quarter of 2020. According to the company, the next phase of the program has begun with the start of detailed design activities for the enlarged fairing with a selected baseline length of 16.25 meters to envelope the projected commercial satellite market requirements, while minimizing the impact on the rocket's design. (The selected length of the fairing was apparently a compromise between 17.25 and 15.25-meter designs, which had been considered in 2016.)

The new fairing "will undergo a rigorous test program including aerodynamic modeling, static and dynamic structural tests, separation and jettison tests, and acoustic testing,” the ILS said.

fairings

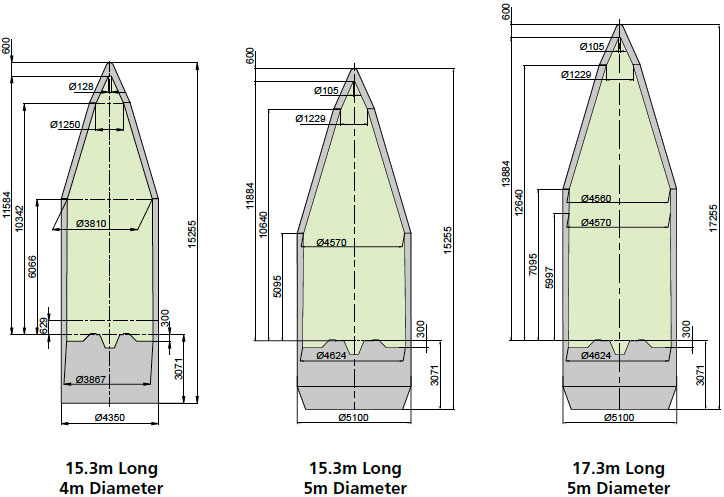

Fairings proposed in 2016 for future upgrades of the Proton family.

According to Roskosmos' procurement documentation issued in 2017, the 16.25 by 5.1-meter metal fairing received a designation 14S75.32.

Other improvements

In addition to the enlarged fairing, during 2016, developers considered other minor design and flight profile changes aimed to reduce operational costs and to marginally improve lifting capabilities of Proton.

Proton-M-Plus was expected to rely on a domestically built separation system used to eject satellites from the upper stage at the conclusion of the orbital insertion. In addition, avionics of the Baza-RB tracking system, used to measure orbital parameters of the upper stage, could be omitted to save mass.

To win a few hundred kilograms in additional payload, developers could also forfeit the standard paint job on at least some of rocket's components, as it had been tried before on a few mass-demanding missions.

In a more drastic payload-boosting measure, Proton-M-Plus could be programmed to enter an initial parking orbit with an inclination of 46 degrees toward the Equator, rather than the 51.6-degree inclination currently practiced in Proton missions. However, this shift would require an agreement with China to drop the vehicle's first stage on its territory.

Apparently, there are also plans to shorten the rocket's warranty, while certifying it for flight without prior firing tests of its engines. However it is unclear, whether military certification authority, which oversees the manufacturing process within the Russian space industry, would approve such a measure.

In addition, the rocket could be manufactured without a standard kit of spare parts, as has been customary until this day.

As of 2016, the Proton-M-Plus could enter operations in 2020, possibly becoming the most powerful variant of the rocket by the time of the family's expected retirement in the mid-2020s and its replacement with the Angara fleet.

(To be continued)

Next chapter: Sunkar rocket



Read much more about the history of the Russian space program in a richly illustrated, large-format glossy edition:

Book



Bookmark and Share


The article and illustration by Anatoly Zak; Last update: September 10, 2017

Page editor: Alain Chabot; Last edit: October 6, 2016
