Russian Orbital Station



Russian airlock for the cis-lunar base

In 2016, Russian engineers proposed the concept of a two-room airlock module, which would enable crews to conduct spacewalks outside the future international cis-lunar outpost. Using a pair of hatches with a diameter of one meter, residents of the outpost near the Moon could conduct assembly and repair operations, as well as installations of bulky hardware on the exterior of the station.

Bookmark and Share

ShM

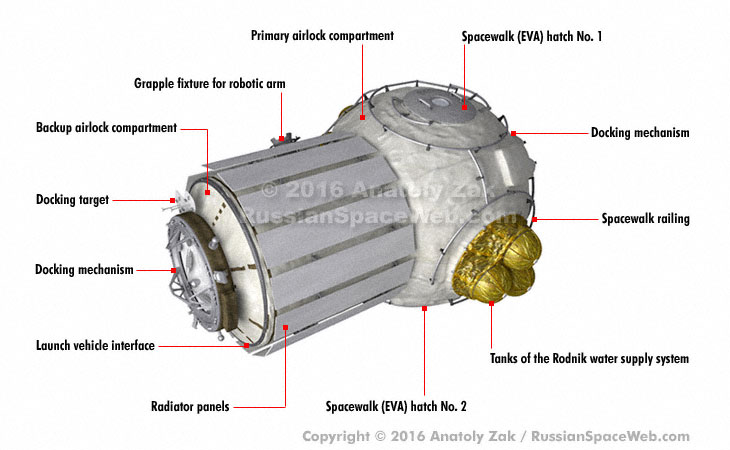

Exterior design of the proposed Russian airlock for the International Manned Platform, IMP, in the lunar orbit as of 2016.

LEARN MORE:

planetary

Specifications of the Russian airlock module for the cis-lunar outpost as of 2016:

Liftoff mass
~9,000 kilograms
Diameter of the main (spherical) compartment
3.3 meters
Internal volume of the main (spherical) compartment
16 cubic meters
EVA hatch diameter
1.0 meters
Cylindrical (backup) compartment volume
9 cubic meters
Diameter of cylindrical (backup) compartment
2.2 meters
Electric power
28 volts
Power consumption during autonomous flight
160 watts
Average power consumption
330 watts
Maximum power consumption
900 watts



From the publisher: Pace of our development depends primarily on the level of support from our readers!
Donate

Russian airlock concept

During the final meeting in 2016 of the international working group on the cis-lunar station, which was held in Houston from October 24 to October 26, the Russian team presented the design of an airlock module to enable spacewalks from the outpost. The 4.6-ton spacecraft could also double as a cargo supply vehicle during its hitchhike ride to lunar orbit on the SLS/Orion vehicle around 2025. The Russian concept was based on the Airlock Module, ShM, originally proposed for the Russian Orbital Station, ROS, which was expected to succeed the International Space Station, ISS.

The future module is essentially made of two airlocks -- the primary spherical chamber and a backup cylindrical extension. The spherical compartment with an internal volume of 16 cubic meters features two hatches for spacewalking cosmonauts. (For comparison, the pair of Docking Compartments on the ISS (SO1 and MIM2), which are used for spacewalks from the Russian segment, have a volume of 12 cubic meters each).

The secondary cylindrical compartment of the future airlock would be normally used as a closet for spacesuits and remain pressurized, but it could also serve as a backup airlock itself in case of emergency, for example, if the primary compartment failed to re-pressurize at the end of a spacewalk. The crew would still use the hatches of the primary compartment to exit the station, but all the systems of the cylindrical compartment were designed to operate in vacuum. Such a backup airlock capability was previously provided by the Kvant-2 module on the Mir space station.

Traditionally for Russian modules, the airlock was expected to have docking ports on both its ends, which would enable it to serve as a pier and a vestibule for incoming spacecraft.

To maximize the use of the airlock module as a delivery vehicle, a pair of three-tank clusters of the Rodnik (Spring) water system would be mounted on lattice structures attached to the sides of the spherical compartment.

Engineering issues

By the end of 2016, the international working group singled out the airlock module as the only feasible Russian component of the future cis-lunar outpost, not counting the Russian transport ship, which still remains in the early stage of development and without a readily available delivery system to the lunar orbit.

Like most components of the cis-lunar outpost, the airlock module was slated to ride to the vicinity of the Moon on the Orion/SLS system. As of 2016, the mission was penciled around 2025 in the provisional assembly sequence of the cis-lunar station.

Following the insertion into a trans-lunar trajectory, pilots of the Orion would separate their spacecraft from the upper stage of the SLS rocket, turn around, dock with the Russian airlock and then extract it from the stage. A few days later, the Orion would rendezvous with the cis-lunar outpost and dock with it via the airlock module.

However the relatively low mass of the Russian airlock meant that the giant SLS rocket would fly not at its maximum payload capacity, losing a precious opportunity to deliver a full cargo to the lunar outpost. The problem could probably be resolved with stuffing the airlock with various supplies during its ride to the station.

As an alternative, NASA engineers requested their Russian colleagues to consider launching the module on the Angara-5 rocket, along with its own space tug, which could automatically rendezvous and dock the spacecraft at the cis-lunar platform.

Because the Russian airlock would be the primary "exit door" for the cis-lunar station (unlike the ISS, where the Russian and US segments have their own airlocks) NASA wanted to evaluate the option of integrating US-built spacesuits with the Russian airlock, along with the Orlan-type Russian suits.

Where to attach it?

There were also discussions concerning where exactly to attach the Russian airlock to the station. Although, its two docking ports allowed to connect other components of the outpost at both end of the Russian vehicle, it would also mean that during spacewalks, the habitable volume would be split into two isolated parts -- not the best configuration from the safety point of view.

Moreover, the central position of the module could create clearance problems for the arriving spacecraft and for the add-on components. As a result, the "open-ended" attachment of the airlock seemed preferable, but the issue remained to be resolved in 2017.

Russian engineers also had to tackle the question of from which end to attach the module to the launch vehicle and how to organize the integration of the module with the station. If the module was to be attached to the SLS via its primary spherical compartment, as it was originally designed for a ride on the Soyuz-2 rocket to the Russian Orbital Station, the Orion would have to dock it to the cis-lunar outpost in the "upside-down" position. The station's robotic arm would then have to be used to undock the airlock, rotate it 180 degrees and re-dock it back to the station.

Alternatively, the airlock could be modified from its original design for the Russian Orbital Station in order to be attached to the launch vehicle via the aft bulkhead of its cylindrical compartment on the opposite end of the module.

All these technical issues are yet to be dealt with, as the overall concept of the cis-lunar station continues to evolve.

On November 9, 2016, the heads of manned space flight programs of the countries involved in the ISS held a teleconference to discuss the status of the cis-lunar outpost project and to coordinate future steps. According to industry sources, Aleksei Strelnikov, Head of Manned Space Flight Directorate at Roskosmos, promised to seek Russian funding for the Airlock Module...



Cargo delivery capabilities of the Airlock Module as of 2016:

Cargo
Mass
Per-day consumption
Supply for four-person crew
Water
1,200 kilograms
2.3 kilograms
130 days
Food (180 food containers inside 14 triple standard containers and three standard containers)
1,170 kilograms
1.7 kilograms
180 days
Clothes, personal hygiene items in 25 standard containers
670 kilograms
0.93 kilograms
180 days
Consumables for life-support system in nine half-size standard containers
144 kilograms
0.2 kilograms
180 days
Consumables for two EVAs
120 kilograms
N/A
N/A
Total mass
3,304 kilograms
-
-



Next chapter: Status of the Russian airlock module in 2018 (INSIDER CONTENT)



Bookmark and Share


The article and illustrations: Anatoly Zak; Last update: January 22, 2019

Page editor: Alain Chabot; Last edit: November 7, 2016

All rights reserved

Book



orion

Artist rendering depicting the Orion spacecraft with the Russian airlock module in the vicinity of the Moon. Note that the module is attached to the transport ship via its spherical compartment, which would not require a redocking after its delivery to the cis-lunar station. Copyright © 2016 Anatoly Zak


docking

In 2015, RKK Energia formulated several concepts of a man-tended habitable platform in the lunar orbit. Click to enlarge. Copyright © 2016 Anatoly Zak


science

By August 2017, Russian engineers at RKK Energia proposed to accomodate scientific airlock on the Russian airlock module. The structure was based on the airlock design for the MLM module of the International Space Station. Click to enlarge. Copyright © 2016 Anatoly Zak
