Requiem for the Angara-3 variant

In a widely advertised "lego-like" philosophy of building a modular family of space launchers, the Angara-3 variant was designed to take the middle position between the Angara-1 and Angara-5 variants in terms of its payload capability. If built in the early 2000s, as it was originally planned, Angara-3 could replace the Ukrainian-built Zenit rocket, but in the early 2020s, it could serve as a replacement to the prospective Soyuz-5 rocket that risked to lose its launch pad in Kazakhstan after the Russian invasion of Ukraine.


Angara-3

From the publisher: Please support independent coverage of the Russian space program
Donate

Made of three standard "universal rocket modules" or URM-1, and topped with a single upper stage, the Angara-3 would be capable of delivering up to 14 tons into the low Earth's orbit, LEO, after launching from Russia's Northern launch site in Plesetsk. Officially designated as Angara-A3, it was sometimes referred to as Angara-Medium.

All booster stages of the rocket were designed to burn a non-toxic mix of kerosene and liquid oxygen. URM boosters were connected to each other by three spar booms. (858)

To reach orbits beyond LEO, Angara-3 could be complemented with upper stages, such as Briz-M or Fregat. (355) It could be suitable for small-size communications satellites heading to the geostationary orbit and for a range of payloads to be deployed in the medium-altitude orbits, such as navigation satellites.

At the beginning of 2005, developers at GKNPTs Khrunichev also pitched Angara-3 as a potential launcher for a new generation crew vehicle that the company was vying to develop in a competitive bid to Roskosmos. At the time, the "human-rated" version of the Angara-3 rocket was designated as Angara-A3M. However, with the increasing mass of the prospective crew vehicle, GKNPTs Khrunichev had to switch to Angara-5P.

Waiting for a mission

At the beginning of the 21st century, promotional materials distributed by GKNPTs Khrunichev projected the introduction of the Angara-3 rocket in 2003 or 2004, however most of the work on that variant stalled along with the rest of the Angara project due to lack of funding until the mid-2000s.

As of 2014, when the Angara-1 and Angara-5 variants finally reached the launch pad, the Russian space agency or the Ministry of Defense had not identified any payloads assigned to Angara-3, even though a number of military and civilian satellites were technically suitable for that configuration.

Around the same time, Roskosmos lost access to the Zenit rocket because of the Kremlin's conflict with Ukraine, so, at least theoretically, there was a new incentive for pushing forward with the Angara-3 variant.

In April 2015, the TASS news agency quoted Dmitry Rogozin, then Deputy Prime Minister: "We can say that we replaced the Zenit rocket with the medium-size Angara-3."

For the next several years, the medium variant appeared regularly with the rest of the Angara family at various events and shows in the form of scaled models and in presentations by Roskosmos and by the official Russian media.

Some reports also circulated about attempts to jump-start work on the Angara-3 variant and even marry the vehicle to the Sea Launch platform, replacing Zenit. However, it appears that very initial studies quickly revealed that Angara-3 was too wide to pass through the narrow clearances of the ocean-going rocket processing vessel or to interface with the equipment of the floating launch platform. Unlike Zenit, the Angara would probably require a service tower on the pad, which was not available on the Sea Launch platform.

Moreover, multiple industry sources also disputed the notion often implied in official public materials advertising the modular nature of the Angara family that the Angara-3 could be easily formed by mere omission of the two boosters from the four-booster Angara-5 variant. As one poster on the web forum of the Novosti Kosmonavtiki magazine explained, the Angara-3 rocket would require a different design of the pneumatic and hydraulic plumbing, as well as a new layout for the onboard electric cabling network. As a result, the developers of the Angara-3 variant would not be able to skip the re-issue of the specific design documentation, if not from scratch at least certainly with considerable revisions of the original blueprints issued for Angara-5. How expensive and time-consuming these changes would be was disputed, but, in any case, it appears that it never went that far.

Angara-3 dies on the drawing board

During his visit to GKNPTs Khrunichev on April 1, 2019, Rogozin, (now in capacity of Head of Roskosmos), finally admitted that plans to build Angara-3 had been shelved because its payload capabilities overlapped with those of the Soyuz-5 rocket, which was officially in development since 2017. Ironically, at this stage, the Angara-3 is still much closer to reality than Soyuz-5, which just appeared on the drawing board and has no production line to really speak off. At the same time, after years of growing pains, the Angara family slowly approaches actual serial production and has at least one launch facility waiting for it.

Therefore, the Angara-3 variant should not be completely written off for the dead, remembering previous zigzags in the Russia's tumultuous launch vehicle strategy. Indeed, in the official interview in February 2021, Head of GKNPTs Khrunichev Aleksei Varochko claimed that the Angara-3 variant would be used in the future. That prediction acquired a new meaning, when the Soyuz-5 project appeared to hit a snag in 2023, due to a move by Kazakhstan blocking the construction of the pad for the project in Baikonur.



Technical specifications of the Angara-3 rocket:

Number of stages
2
Payload to LEO, (Circular 200 kilometers, inclination 63 degrees from Plesetsk)
14 tons
Payload to geostationary transfer orbit (Altitude of perigee -- 5,500 kilometers, inclination -- 25 degrees) from Plesetsk
2.5 tons
Payload to geostationary orbit from Plesetsk
1.0 tons
Launch mass
478 tons
Payload fairing diameter
4,350 mm
Total length
45,809 mm
Stage I
Stage I propulsion
Single (1) one-chamber RD-191
Stage I liftoff mass
132.6 tons
Stage I dry mass
8.5 tons
Stage I fuel
Kerosene (RP-1)
Stage I oxidizer
Liquid Oxygen
Stage I main diameter
2,900 mm
Stage I length
25,695 mm
Stage II
Stage II propulsion
Single (1) four-chamber RD-0124A
Stage II liftoff mass
35.8 tons
Stage II dry mass
3.2 tons
Stage II fuel
Kerosene (RP-1)
Stage II oxidizer
Liquid Oxygen
Stage II main diameter
3,600 mm
Stage II length
6,874 mm



Technical specifications of the RD-191 engine:

Thrust at the sea level
196 tons
Specific Impulse at the sea level
309 seconds
Thrust in vacuum
212 tons
Specific Impulse in vacuum
337 seconds





Article, photos and an illustration by Anatoly Zak; Last update: July 12, 2023

Page editor: Alain Chabot; Last edit: April 2, 2019

All rights reserved

insider content

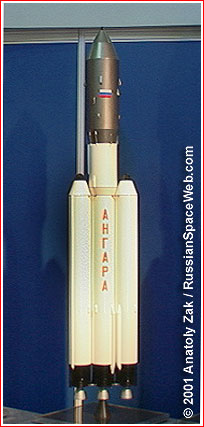

Scale model of the original version of the Angara-3 rocket. Copyright © 2001 Anatoly Zak


Artist rendering of the Angara-A3M rocket. Copyright © 2005 Anatoly Zak


Angara

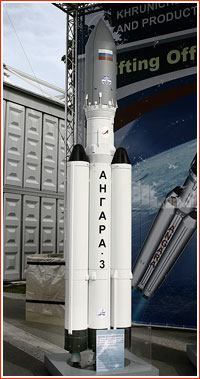

A scale model of the Angara-3 rocket unveiled in 2008. Copyright © 2008 Anatoly Zak


2010

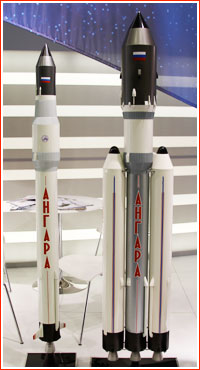

A scale model of the Angara-3 (right) rocket displayed in 2010. Copyright © 2010 Anatoly Zak


2011

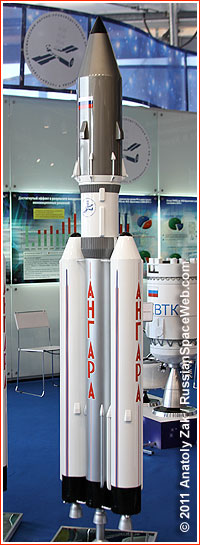

A scale model of the Angara-3 rocket displayed in 2011. Copyright © 2011 Anatoly Zak


2013

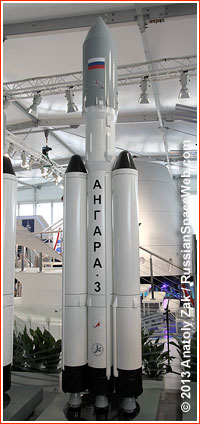

A scale model of the Angara-3 rocket displayed in 2013. Copyright © 2013 Anatoly Zak
