Previous Proton mission: Eutelsat-3D


Flight profile

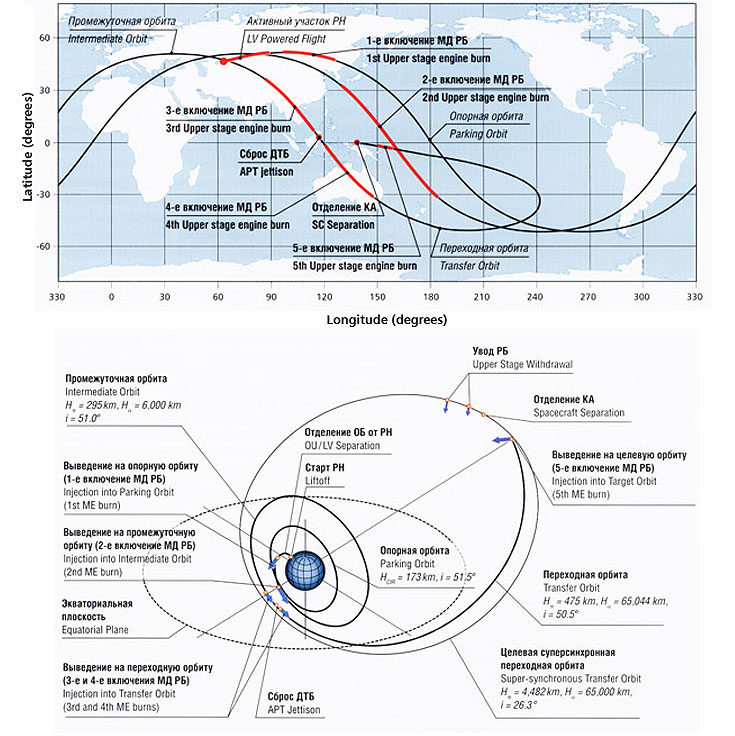

Above: Ground track and flight profile of the Proton mission to deliver SES-6.

Bookmark and Share


Proton to launch SES-6 satellite

2013 June 3

A Proton rocket launched a commercial communications satellite in the fourth mission of a Russian workhorse space booster in 2013.

A Proton-M rocket with a Briz-M upper stage lifted off as scheduled from Baikonur Cosmodrome's Pad 39 at Site 200 on Monday, June 3, 2013, at 13:18:31 Moscow Time (05:18 a.m. EDT). The vehicle was carrying the 6,140-kilogram SES-6 satellite.

Flight profile

To deliver SES-6, the Proton M was expected to use a 5-burn Briz-M mission design. The first three stages of the Proton will use a standard ascent profile to place the payload section including Briz-M upper stage (No. 99541) and the SES-6 satellite into a sub-orbital trajectory. From this point in the mission, Briz-M will perform planned mission maneuvers to advance the orbital unit first to a circular parking orbit, then to an intermediate orbit, followed by a transfer orbit, and finally to a super-synchronous transfer orbit. Separation of the SES-6 satellite into a 4,482 by 65,000-kilometer orbit with an inclination 26.3 degrees toward the Equator was scheduled to occur approximately 15 hours, 31 minutes after liftoff.

The satellite would then use its own propulsion system to enter a geostationary orbit 36,000 kilometers above the Equator at 116.8 degrees West longitude, where it is expected to function for 15 years.

Mission history

Proton's launch of SES-6 was the sixth mission under the SES Multi Launch Agreement, MLA, signed in June 2007 by the International Launch Service, ILS, which markets Proton around the world, and SES Satellite Leasing Limited, SES’s satellite procurement and leasing company based in the Isle of Man. Plans for the SES-6 launch were announced on March 16, 2011.

SES-6, weighing about six metric tons at launch, was being built on Astrium’s Eurostar 3000 platform and was expected to carry 43 C-band and 43 Ku-band transponders to serve SES’s existing cable-television customers and provide capacity for growth.

SES-6 was to replace the NSS-806 satellite at the orbital location of 40.5 degrees West longitude, and would provide enhanced coverage in North, Central and South America and will further support applications like HD, DTH, enterprise networks and digital inclusion projects in the Latin America region serving over 18 million households.

During 2012, the mission was expected in the first quarter of 2013, but by November 2012 it was postponed to April 2013. The launch was then set for June 3, 2013.

The SES-6 satellite was delivered to Baikonur on May 3, 2013.




SES-6 mission timeline on June 3, 2013, according to GKNPTs Khrunichev:

Event
Moscow time
EDT
Scheduled elapsed time
Factual elapsed time
Deviation
Liftoff
13:18:30.969
5:18 a.m.
0
0
0
Stage 2 oxidizer tank membrane breakup
-
-
119 seconds
118 seconds
-1 second
Stage 1 separation command
-
-
120 seconds
120 seconds
0
Stage 3 main engine ignition command
-
-
324 seconds
325 seconds
1 second
Stage 2 separation
-
-
327 seconds
328 seconds
1 second
Stage 3 ignition command
-
-
330 seconds
331 seconds
1 second
Payload fairing jettison command
-
-
345 seconds
346 seconds
1 second
Stage 3 main engine cutoff
-
-
571 seconds
572 seconds
1 second
Payload section separation
13:28:15
5:28 a.m.
582 seconds
583 seconds
1 second
Briz-M main engine firing 1 start
-
-
676 seconds
678 seconds
2 seconds
Briz-M main engine firing 1 end (04 min. 27 sec.)
-
-
943 seconds
937 seconds
-6 seconds
Briz-M main engine firing 2 start
-
-
1 h. 50 min. 30 sec.
6,630 seconds
0
Briz-M main engine firing 2 end (duration: 19 min. 34 sec.)
-
-
2 h. 10 min. 4 sec.
7,781 seconds
-23 seconds
Briz-M main engine firing 3 start
-
-
4 h. 23 min. 49 sec.
15,829 seconds
0
Briz-M main engine firing 3 end (duration: 9 min. 26 sec.)
-
-
4 h. 33 min. 15 sec.
16,387 seconds
-8 seconds
Briz-M external tank separation
-
-
4 h. 34 min. 05 sec.
16,438 seconds
-7 seconds
Briz-M main engine firing 4 start
-
-
4 h. 35 min. 32 sec.
16,532 seconds
0
Briz-M main engine firing 4 end (duration: 8 min. 25 sec.)
-
-
4 h. 43 min. 57 sec.
17,025 seconds
-12 seconds
Briz-M main engine firing 5 start
-
-
15 h. 15 min. 05 sec.
54,905 seconds
0
Briz-M main engine firing 5 end (duration: 3 min. 34 sec.)
-
-
15 h. 18 min. 39 sec.
55,114 seconds
-5 seconds
SES-6 spacecraft separation from Briz-M
04:49:31.331*
8:49 p.m.
15 h. 31 min. 00 sec.
55,860 seconds
0

*June 4

Next Proton mission: A launch accident with GLONASS satellites

Bookmark and Share



Page author: Anatoly Zak; Last update: July 6, 2013

All rights reserved

IMAGE ARCHIVE

SES-6

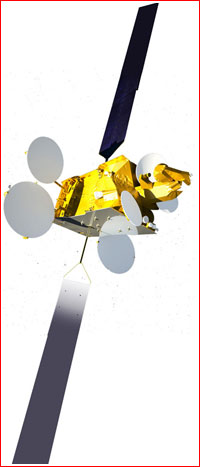

SES-6 satellite. Credit: ILS


launch

Proton lifts off with SES-6 satellite on June 3, 2013. Credit: Roskosmos


Separation

An artist depiction of the separation between Briz-M and SES-6 satellite. Credit: ILS
