Soyuz launches seventh OneWeb cluster

A Soyuz-2-1b/Fregat rocket successfully delivered a fresh batch of 36 satellites for the UK-based OneWeb company after lifting off on May 28, 2021, from Vostochny Cosmodrome. Delayed for 24 hours by a technical problem, it was the third launch of the year into the OneWeb constellation, boosting it from 182 to 218 spacecraft.

launch

The seventh Soyuz mission with OneWeb satellites at a glance:

Mission and spacecraft designation
ST32 OneWeb (Satellites 183-218)
Launch vehicle
Soyuz 2-1b No. V15000-007/Fregat No. 123-10
Payload fairing
81KS
Launch site
Launch date and time
2021 May 28, 20:38:39.549 Moscow Time (actual)
Payload mass (including dispenser)
36 satellites 147.5 kilograms each, 5,810 kilograms total
Target orbit
Altitude: ~450 kilometers, inclination 87.4 degrees*

*Satellites will use their own propulsion system to enter a 1,200-kilometer operational orbit

SUPPORT THIS PROJECT!

Donate

Preparing the seventh OneWeb mission

The seventh OneWeb launch had the designation ST32 in the naming system used by Arianespace and its affiliate Starsem, which managed the campaign.

On April 29, 2021, Roskosmos said that the Fregat upper stage for the May mission had been undergoing propellant loading operations at the fueling station. On May 6, Roskosmos announced that specialists at Vostochny branch of the TsENKI infrastructure center installed the integrated stack of the first and second stages of the Soyuz-2-1b rocket on its testing work site inside the vehicle processing building, MIK RN. On the same day, the two parts of the payload fairing for the mission were transferred from the MIK RN building to the spacecraft processing building, MIK KA, in preparation for the encapsulation of the payload section.

On May 7, Roskosmos announced that an An-124-100 transport plane with the fresh batch of OneWeb satellites had arrived at the Ignatievo airport near Vostochny.

The specialists then performed electrical and pneumatic tests of the rocket, while the fueling operations with the Fregat stage were to be completed on May 13, 2021. The following day, Roskosmos confirmed that the fueling had been completed and that Fregat had been transferred to the spacecraft processing building for the assembly of the payload section, which was finished by May 18 with the encapsulation of the satellites under their payload fairing. On May 20, the payload section was transferred to the vehicle assembly building, MIK RN, where it was integrated with the third stage of the Soyuz-2 launch vehicle. In parallel, the lower composite of the rocket, consisting of the first and second stages, was lifted from its work site and loaded on the mobile transporter-erector in preparation for the final assembly of the vehicle, which was completed on May 21. The State Commission overseeing the preparations met the following day and cleared the vehicle for the rollout to the pad which took place on the morning of May 24, local time.

Operations on the pad

pad

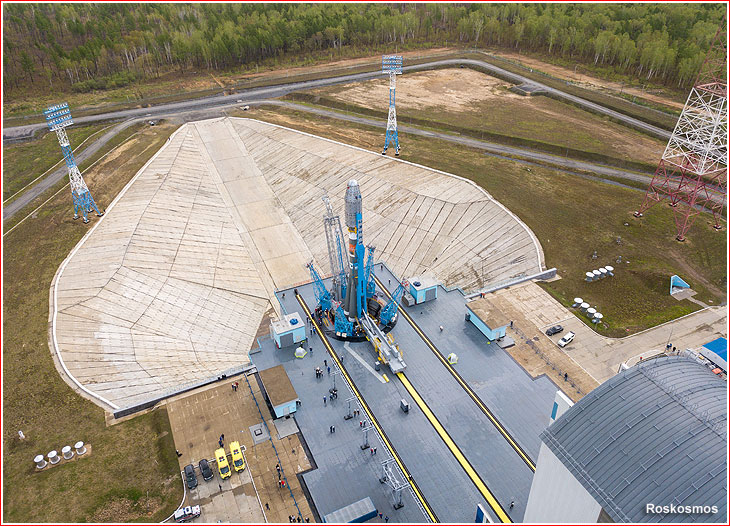

In the course of the day on May 24, the rocket was installed on the pad, the mobile service tower was moved into position around the vehicle and it was connected to various systems of ground equipment. The autonomous checks of the rocket's systems were also scheduled to begin before the end of the day.

On May 25, at 08:00 local time (02:00 Moscow Time), launch pad personnel resumed checks of the rocket and of the spacecraft batteries, as well as conducting the launch readiness simulation of the Fregat upper stage. In the second half of the day, the rocket's systems were taken through the simulation of the initial active phase of the orbital insertion up to the moment of separation between the payload section and the third stage. All the telemetry received during the tests was then analyzed.

On May 26, starting at 09:00 local time (03:00 Moscow) launch personnel re-confirmed the battery charge on the satellites and conducted thermal conditioning of the payload section. The flushing of the fueling system with high-concentration hydrogen peroxide was scheduled to start at 16:15 Moscow Time. It was followed by the attachment of fueling lines to the rocket and final operations.

The State Commission was scheduled to convene for the final time before launch on the evening of May 27 to clear the rocket for fueling and liftoff.

Launch scrub

pad

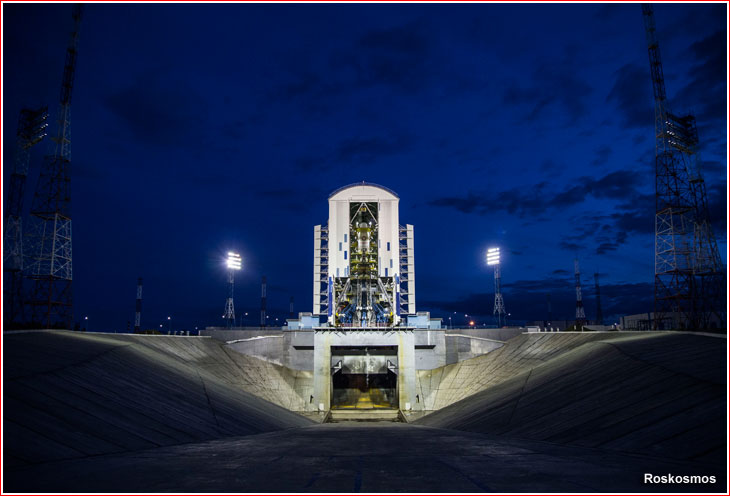

On May 27, Roskosmos confirmed that the rocket was cleared for fueling according to the following schedule:

  • 16:10 Moscow Time: Start of loading of the high-concentration hydrogen peroxide;
  • 17:30 Moscow Time: Start of loading of the first, second and third stages with liquid oxygen;
  • 17:45 Moscow Time: Start of cooling and loading of liquid nitrogen;
  • 17:55 Moscow Time: Start of loading of the first and second stages with kerosene;
  • 18:25 Moscow Time: Start of loading of the third stage with kerosene.

The fueling was to be followed by final operations: the automated pre-launch process, withdrawl of the service platform and the mobile service tower and the setup of the payload separation system, PRSS, in flight mode.

Less than an hour before the scheduled liftoff on May 27, 2021, at 20:43:29 Moscow Time, Roskosmos announced that the mission had been postponed for a backup window. According to the State Corporation, the rocket remained in launch readiness and the time of the new launch attempt would be announced separately.

Arianespace then said that due to the replacement of one item of electrical equipment on the rocket, the launch had to be postponed for 24 hours. Roskosmos the confirmed that the new attempt had been scheduled for 20:38:39 Moscow Time (1:38 p.m. EDT) on May 28 and said that cryogenic oxidizer would be drained from the rocket during the delay.

According to one source, the technical problem which forced the delay was similar to a failure of the inertial measurement unit during the Sentinel-1B launch attempt on April 24, 2016. According to another source, a three-axis gyro stabilization instrument was replaced ahead of the new launch attempt on May 28. The meeting of the State Commission on May 28 then cleared the vehicle for flight.



Planned countdown milestones for a typical OneWeb mission, according to Arianespace:

PRE-LAUNCH EVENTS
Time (h:min:sec)
Beginning of the meeting for launcher fueling authorization (BTR)
-04:58:29
Beginning of launch vehicle fueling
-04:33:29
Completion of launch vehicle fueling
-01:15:00
Test bars at 1 kHz tone
-00:30:00
"Key-to-launch" command (beginning of Soyuz synchronized sequence)
-00:06:00
Fregat transfer to onboard power supply
-00:05:00
Upper Composite umbilical drop off command
-00:02:25
Ground-board power transfer
-00:00:45
Lower stage mast retraction
-00:00:19
Ignition
-00:00:16
Preliminary thrust level
-00:00:11
Liftoff
00:00:00



Launch profile of the OneWeb mission originating from Vostochny

ObneWeb

Approximate ground track of the OneWeb mission.

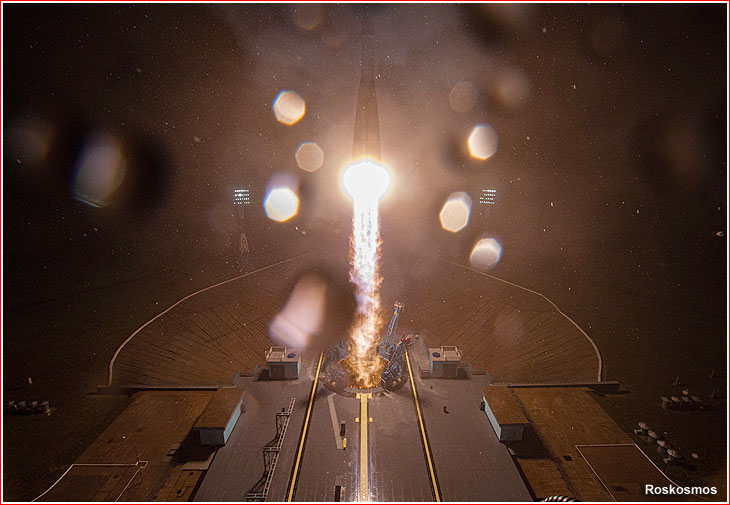

A Soyuz-2-1b rocket carrying a cluster of 36 OneWeb satellites lifted off from 1S pad in Vostochny on May 28, 2021, at 20:38:39.549 Moscow Time (17:38 UTC, 1:38 p.m. EDT on May 28). It was 02:38 local time on May 28 in Vostochny.

The ascent profile of the mission had a timeline and flight parameters similar to those employed in the previous OneWeb launches from Vostochny. After a few seconds of vertical ascent, the launch vehicle headed northward to align its ascent trajectory with a near-polar orbit inclined 87.4 degrees toward the plane of the Equator. The particular ground track employed during the ascent to orbit from Vostochny had so far been unique to OneWeb missions.

The four boosters of the first stage separated 1 minute and 58 seconds after liftoff (L+117.8 sec.), but the core booster of the second stage continued firing until 4 minutes and 48 seconds into the flight (L+287.5 sec.). In the midst of its operation, the payload fairing protecting the payload in the dense atmosphere split into two halves and dropped off at T+3 minutes 35 seconds (L+214.8 sec.). Immediately after the separation of the second stage, the aft section of the third stage split into three fragments and separated at L+292.1 seconds.

The fragments of the rocket were expected to fall at Drop Zones No. 873 and 875 in the Aldan and Kobyask Districts of the Sakha (Yakut) Republic in the Russian Far East.

The third stage continued firing until 9 minutes and 22 seconds into the flight, releasing the Fregat upper stage and its cargo on a ballistic trajectory with an apogee of 249 kilometers, just short of orbital velocity at L+561.8 seconds. This allowed the third stage to reenter and fall back to the ground at a predicted remote area of the ocean instead of reaching orbit.

Upper stage maneuvers

scenario

One minute after separation from the third stage, Fregat fired its main engine for 307 seconds to enter an elliptical (egg-shaped) 150 by 427-kilometer transfer orbit with the highest point (apogee) near the target altitude for the release of OneWeb satellites.

After its first maneuver, Fregat climbed passively for nearly an hour. Soon after an orbital insertion, the space tug and its passengers left the communications range of ground stations for 1 hours 18 minutes and 42 seconds, therefore Fregat's second maneuver and the separation of the first batch of satellites was taking place out of contact with mission control. The restart of the Fregat's engine for a 31-second firing then happened near the apogee of the transfer orbit making it circular at an altitude of around 450 kilometers.

The first quartet of OneWeb satellites was released in opposite directions from their dispenser 1 hour 18 minutes and 20 seconds after launch. It was followed nearly 16 minutes later by a 15-second firing of the small attitude control thrusters, SOZ, aboard Fregat to get the vehicle in position for the second quartet drop around three minutes later.

Fregat was programmed to repeat its thruster firing and the four-satellite release routine seven more times, evenly distributing quartets of satellites along their orbit.

When the Fregat reentered the communications range, mission control confirmed that the 3rd, 4th, 5th and 6th batch of OneWeb satellites had indeed separated from their carrier. Then, still in direct view of ground stations, the 7th quartet also disembarked from the space tug. However, the vehicle then again went out of communications range for another 1 hour 18 minutes and 55 seconds.

The final four of the 36 passengers separated from their space tug 3 hours 51 minutes and 40 seconds after their liftoff from Vostochny. But the empty Fregat reappeared in the view of ground stations later, making it possible to confirm the separation of the 8th and 9th OneWeb quartets.

Around an hour after the release of its final passengers, Fregat was programmed to initiate a braking maneuver with its main engine designed to push the stage on a disposal orbit, resulting in its quick destruction in the upper atmosphere nearly six hours after launch over a remote area of the Pacific Ocean. In total, Fregat was to perform 11 active maneuvers: three with its main engine and eight firings of the SOZ attitude control thrusters.

As in all previous missions, OneWeb satellites had to use their own electric propulsion systems to climb to an operational orbit of around 1,200 kilometers.



Timeline of the OneWeb mission on May 28, 2021:

Event
Scheduled elapsed time
Liftoff
0
Stage I separation
1 minutes 58 seconds (117.8 sec.)
Payload fairing separation
3 minutes 35 seconds (214.6 sec.)
Stage II separation
4 minutes 48 seconds (287.5 sec.)
Stage III separation
9 minutes 22 seconds
Fregat main engine firing 1 begins
10 minutes 22 seconds
Fregat main engine firing 1 ends
15 minutes 29 seconds
Fregat main engine firing 2 begins
1 hour 13 minutes 40 seconds
Fregat main engine firing 2 ends
1 hour 14 minutes 12 seconds
Separation 1 of first four OneWeb satellites
1 hour 18 minutes 20 seconds
Fregat attitude control system firing 1 begins
1 hour 34 minutes 10 seconds
Fregat attitude control system firing 2 ends
1 hour 34 minutes 25 seconds
Separation 2 of four OneWeb satellites
1 hour 37 minutes 30 seconds
Fregat attitude control system firing 2 begins
1 hour 53 minutes 20 seconds
Fregat attitude control system firing 2 ends
1 hour 53 minutes 34 seconds
Separation 3 of four OneWeb satellites
1 hour 56 minutes 40 seconds
Fregat attitude control system firing 3 begins
2 hours 12 minutes 30 seconds
Fregat attitude control system firing 3 ends
2 hours 12 minutes 42 seconds
Separation 4 of four OneWeb satellites
2 hours 15 minutes 50 seconds
Fregat attitude control system firing 4 begins
2 hours 31 minutes 40 seconds
Fregat attitude control system firing 4 ends
2 hours 31 minutes 51 seconds
Separation 5 of four OneWeb satellites
2 hours 35 minutes 00 seconds
Fregat attitude control system firing 5 begins
2 hours 50 minutes 50 seconds
Fregat attitude control system firing 5 ends
2 hours 51 minutes 00 seconds
Separation 6 of four OneWeb satellites
2 hours 54 minutes 10 seconds
Fregat attitude control system firing 6 begins
3 hours 10 minutes 00 seconds
Fregat attitude control system firing 6 ends
3 hours 10 minutes 08 seconds
Separation 7 of four OneWeb satellites
3 hours 13 minutes 20 seconds
Fregat attitude control system firing 7 begins
3 hours 29 minutes 10 seconds
Fregat attitude control system firing 7 ends
3 hours 29 minutes 17 seconds
Separation 8 of four OneWeb satellites
3 hours 32 minutes 30 seconds
Fregat attitude control system firing 8 begins
3 hours 48 minutes 20 seconds
Fregat attitude control system firing 8 ends
3 hours 48 minutes 26 seconds
Separation 9 of four OneWeb satellites
3 hours 51 minutes 40 seconds
Fregat main engine firing 3 begins for deorbiting
4 hours 50 minutes 05 seconds
Fregat main engine firing 3 ends for deorbiting
4 hours 50 minutes 35 seconds
Mission end
4 hours 52 minutes 58 seconds
