Soyuz rocket resumed flights after accident

The Russian military personnel in Plesetsk launched an operational spacecraft for electronic intelligence, known as Lotos-S1 or 14F145. A part of the Liana constellation, the mission lifted off on a Soyuz-2-1b rocket on Oct. 25, 2018, at 03:15 Moscow Time (8:15 p.m. EDT on October 24) or just two weeks after the failed launch of the Soyuz MS-10 spacecraft on a Soyuz-FG rocket.


Bookmark and Share

flight

The fourth Lotos-S1 mission at a glance:

Primary payload Kosmos-2528 14F145 (Lotos-S1 No. 804)
Launch vehicle Soyuz-2-1b (14A14)
Launch site Plesetsk, Site 43 (Launch facility 17P32-S4)
Launch date 2018 Oct. 25, 03:15 Moscow Time

From the publisher: Please help to keep this site open and current! The pace of our development depends primarily on the level of support from our readers.

Donate

Preparations for launch

pad

The launch of the fourth Lotos-S1 satellite was initially planned for Aug. 26, 2018, but on August 17, the decision was made to postpone the flight, even though all preparations at the launch site were proceeding as planned, indicating a possible issue with a previous spacecraft in orbit. At the beginning of October, the launch was planned for October 18, but by the middle of the month, the mission was re-scheduled for October 25, in the wake of the launch accident with the Soyuz MS-10 spacecraft on October 11. Despite the ongoing investigation into the assembly process and the performance of the separation system between the first and second stage of the Soyuz-FG rocket during the October 11 accident, officials in Plesetsk were confident enough to proceed with the launch of a Soyuz-2-1b rocket.

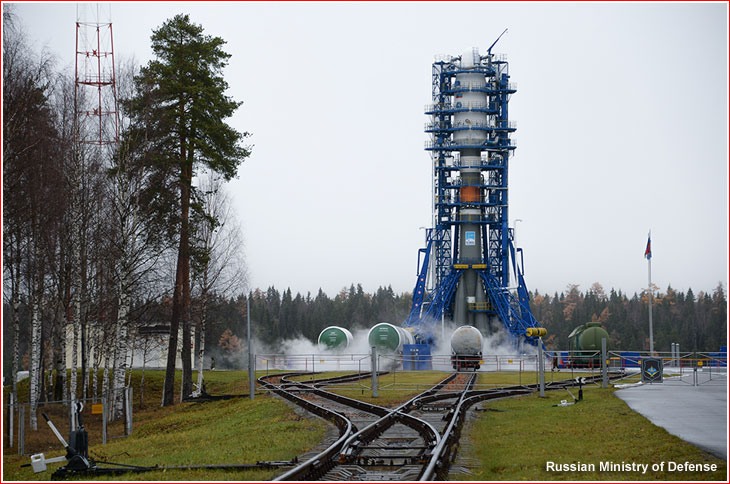

In preparation for liftoff, the rocket with the spacecraft was rolled out to the launch pad on October 22 and underwent integrated testing during the day of October 23.

The fueling of the rocket began at 23:40 Moscow Time (4:40 p.m EDT) on October 24.

How Lotos was launched

ground track

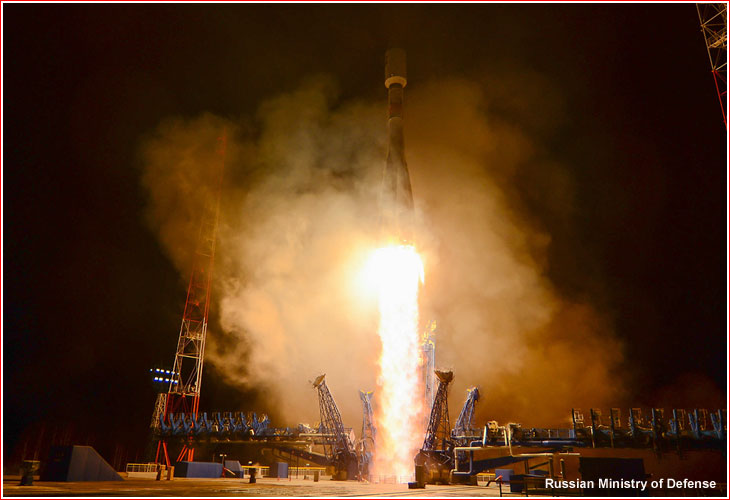

A Soyuz-2-1b rocket carrying the 14F145/Lotos-S1 military satellite for the Liana electronic intelligence network lifted off from Site 43 in Plesetsk on Oct. 25, 2018, at 03:15 Moscow Time.

After a few seconds in vertical ascent, the rocket headed northeast to align its ascent trajectory with an orbit inclined around 67.1 degrees toward the Equator. The four boosters of the first stage separated after around two minutes in flight and fell at the S15 drop zone around 350 kilometers from the launch site. The payload fairing protecting the payload probably dropped next, likely targeting the S16 drop zone in the Komi Republic. Less than five minutes into the flight, the core booster of the rocket completed its firing and separated as well.

Moments before the second stage separation, the RD-0124 engine of the third stage fired through the interstage lattice structure, which then separated along with the second stage.

Around five seconds later, the tail section on the third stage dropped splitting into three segments. Both, the second-stage booster and the segments of the tail section aimed at the S18 drop zone in the Yamalo-Nenetsk Autonomous Region. The third stage then continued firing until around nine minutes into the flight, before releasing its payload into an initial orbit.

According to the official statement from the Russian Ministry of Defense issued after the launch, Col. General Aleksandr Golovko, the commander of the Russian space forces, oversaw launch operations in Plesetsk and the rocket's ascent and the insertion of the spacecraft into orbit had proceeded in a nominal mode. The ground assets of the Titov Chief Test Center of the Airspace Forces began tracking the launch vehicle at 03:18 Moscow Time, a Ministry of Defense communique quoted by the official Russian media said around a quarter of an hour after the liftoff.

After entering orbit, the military satellite recieved an official designation Kosmos-2528, the Ministry of Defense said.

Lotos-S1-4 in orbit

In previous launches of Lotos satellites, the spacecraft and its empty third stage would first enter a 200 by 900 kilometer elliptical orbit, but the satellite would then fire its engine in apogee to circularize its orbit at a safe altitude of around 900 kilometers. The satellite would then be ready for operation.

As before, NORAD listed two objects associated with the mission – spacecraft itself and the third stage of the Soyuz rocket that had delivered it into orbit:

Object
International designation
NORAD ID
Inclination
Apogee
Perigee
To be assigned
2018-082A
43657
67.142 degrees
901
239
To be assigned
2018-082B
43658
67.138 degrees
883
238

By Oct. 29, 2018, the satelllite, now identified as Kosmos-2528, maneuvered to its expected nearly circular orbit. According to NORAD radar, the spacecraft entered a 903 by 910-kilometers orbit with an inclination 67.149 degrees toward the Equator.



A complete list of launches in the Liana constellation:

No. Launch date and time
Spacecraft designation
Launch vehicle
Launch site
1 2009 Nov. 20, 13:44 Moscow Time
Kosmos-2455
Plesetsk, Site 43
2 2014 Dec. 25, 06:01 Moscow Time
Kosmos-2503
Plesetsk, Site 43
3 2017 Dec. 2, 13:43:26.331 Moscow Time Plesetsk, Site 43
4 2018 Oct. 25, 03:15 Moscow Time
Kosmos-2528
Plesetsk, Site 43





Page author: Anatoly Zak; last update: November 3, 2018

Page editor: Alain Chabot; last edit: October 24, 2018

All rights reserved

Book

Lotos-S

Lotos-S electronic intelligence spacecraft. Credit: Arsenal


bunker

Launch personnel oversees preparations of the rocket inside the firing bunker. Click to enlarge.


fueling

The fueling of the Soyuz rocket began at 23:40 Moscow Time on Oct. 24, 2018. Click to enlarge.
