Voskhod launch vehicle (11A57)

Bookmark and Share

Voskhod

Voskhod launch vehicle.

Please help to keep this site open and current! The pace of our development depends primarily on the level of support from our readers.

Donate

An initial concept of the three-seat Vostok formulated in February 1964 called for keeping the mass of the spacecraft unchanged, however the resulting Voskhod gained weight, reaching 5.7 tons. (466)

To launch the heavier payload, its rocket was equipped with a more powerful upper stage, which was borrowed from the 8K78 (Molniya) booster. It enabled to add an extra ton of payload. The modified rocket received a designation 11A57. (84)

In its aerodynamic configuration, the 11A57 variant was very close to the 8K78 version of the rocket with the 1M Mars probe, however, the cylindrical section of its payload assembly was streched by 2,710 millimeters to 16,665 millimeters versus 13,955 millimeters on the 8K78 variant.

A similar vehicle -- 11A59 -- was also used to launch Zenit reconnaissance satellites.

A total of 299 vehicles under a designation 11A57 were eventually launched, including 14 that failed. However some of the third stages on 11A57 were equipped with the older RD-0108 engine, while the majority had RD-0110.

separation

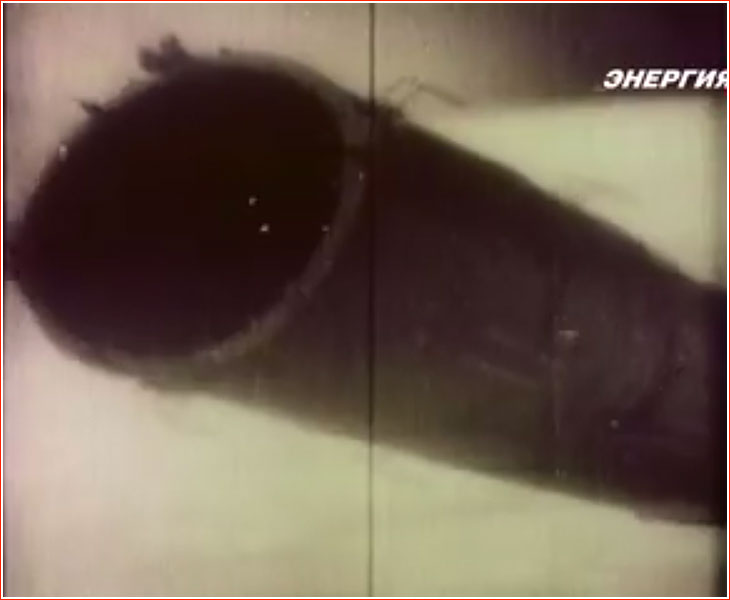

Separation of the third stage apparently filmed during the Voskhod mission.







Read (and see) much more about the history of the Russian space program in a richly illustrated, large-format glossy edition:

Book



Bookmark and Share



Page author: Anatoly Zak; Last update: March 13, 2020

All rights reserved



insider content



stage3

To carry a heavier Voskhod spacecraft, its launch vehicle was upgraded with a more powerful third stage.


Fueling

Fueling of the 11A57 (Voskhod) rocket before launch. Credit: RKK Energia


launch

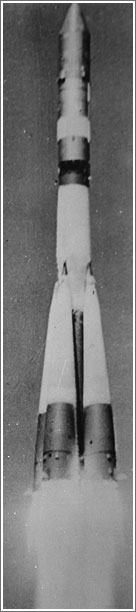

Launch of the Voskhod-2 spacecraft.


Lift off

launch
