The
UR-100 missile developed at Vladimir Chelomei's design bureau in the town
of Reutov near Moscow became the most numerous ICBM deployed in the Soviet
Union during the Cold War. Since mid-1960s, several generations of the
UR-100-based missiles have been developed.
The
mass production of the missile at Khrunichev enterprise in Moscow stopped
around 1990, however the already deployed missiles remained in the armaments
of the Russian Strategic Missile Forces for the next decade. The UR-100NU
missile also became a base for Rockot and Strela launch vehicles, developed
respectively by Khrunichev and NPO Mashinostroenia.
UR-100
family overview:
|
Name
|
Idustrial
|
Treaty
|
US
|
NATO
|
Type |
| UR-100 |
8K84
|
RS-10
|
SS-11
|
Sego
|
Silo-based
ICBM for 15P084 complex |
|
UR-100M
|
8K84M
|
RS-10
|
SS-11
|
Sego
|
Project
of sea-based ICBM for D-8 complex |
| UR-100UTTKh |
8K84UTTKh
|
RS-10
|
SS-11
Mod 2
|
Sego
|
Silo-based
ICBM for 15P084 complex
|
| UR-100PRO |
8K84
|
RS-10
|
SS-11
|
Sego
|
1962-63
ABM Taran system |
| UR-100
mod. |
15A10
|
RS-10
|
SS-11
|
Sego
|
Project
of silo-based ICBM |
| UR-100K |
15A20
(8K84K)
|
RS-10
(RS-10M)
|
SS-11
Mod 3
|
Sego
|
Silo-based
ICBM for 15P020 complex |
| UR-100U |
15A20U
|
RS-10
(RS-10M)
|
SS-11
Mod 4
|
Sego
|
Silo-based
ICBM for 15P020 complex |
| UR-100N |
15A30
|
RS-18A
|
SS-19
|
Stiletto
|
Silo-based
ICBM for 15P030 complex |
| UR-100NUTTKh
(UR-100NU) |
15A35
|
RS-18B
|
SS-19
Mod 2
|
Stiletto
|
Silo-based
ICBM |
| UR-100NU
Strela |
15A35
|
RS-18B
|
SS-19
Mod 2
|
Stiletto
|
Launch
vehicle |
| UR-100NU
Rockot |
15A35
|
RS-18B
|
SS-19
Mod 2
|
Stiletto
|
Launch
vehicle |
| UR-100NU/SLA
Prizyv |
15A35
|
RS-18B
|
SS-19
Mod 2
|
Stiletto
|
Project
of emergency and rescue rocket |
UR-100
family tech dossier:
|
-
|
UR-100
|
UR-100UTTKh
|
UR-100K
|
UR-100U
|
|
Number
of stages
|
2
|
2
|
2
|
2
|
|
Industry
name
|
8K84,
8K84M
|
15A20
(8K84K)
|
15A20
(8K84K)
|
15A20U
|
|
Length
of the vehicle
|
16.45 - 16.925 meters
|
18.9
- 19.0 meters
|
18.95
meters
|
19.1
- 19.8 meters
|
|
Diameter
|
2.0
meters
|
2.0
meters
|
2.0
meters
|
2.0
meters
|
|
Weight
(fueled)
|
39.4
- 42.3 tons
|
50.1
tons
|
50.1
tons
|
50.1
- 51.24 tons
|
|
Fuel
|
|
|
|
|
| Oxidizer |
N2O4
|
N2O4
|
N2O4
|
N2O4
|
| First
launch |
1965
|
1969
|
1971
|
1971
|
| Operational |
1966
|
1970
|
1972
|
1974
|
| Test
sites |
|
|
|
|
|
|
10,600
- 12,000 km
|
12,000
- 13,000 km
|
10,600
- 12,000
|
10,600
- 12,000 km
|
|
Warhead
type:
|
Single
15F842 (760 - 1,500 kg)
|
900
- 1,200 kg
|
1,208
kg
|
Single
or 3 MIRV
|
| Stage
1 |
(8S816)
|
-
|
-
|
- |
| Stage
1 length |
12.5
meters
|
13.3
meters
|
13.4
meters
|
13.4
meters |
| Stage
1 diameter |
2.0
meters
|
2.0
meters
|
2.0
meters
|
2.0
meters |
| 1st
stage propulsion |
- 3
one-chamber RD-0216
- 1
one-chamber RD-0217
|
- 3
one-chamber RD-0216
- 1
one-chamber RD-0217
|
-
3
one-chamber RD-0216
-
1
one-chamber RD-0217
|
- 3
one-chamber RD-0216
- 1
one-chamber RD-0217
|
| Stage
2 |
(8S817)
|
-
|
-
|
- |
| Stage
2 length |
2.9
meters
|
3.2
meters
|
3.8
meters
|
3.8
meters |
| Stage
2 diameter |
2.0
meters
|
2.0
meters
|
2.0
meters
|
2.0
meters |
| 2nd
stage propulsion |
- 1
one-chamber 15D13 main engine
- 1
four-chamber 15D14 steering engine
|
- 1
one-chamber 15D13 main engine
- 1
four-chamber 15D14 steering engine
|
- 1
one-chamber 15D13 main engine
- 1
four-chamber 15D14 steering engine
|
- 1
one-chamber 15D13 main engine
- 1
four-chamber 15D14 steering engine
|
UR-100
development cooperation:
| Element
|
Developer |
Leading designer |
Location |
| Overall
design |
OKB-52/TsKBM
|
V.
Chelomei
|
Reutov
|
| Production |
ZIKh,
Polet
|
Ryzhikh
|
Moscow,
Omsk
|
| The
propulsion system (two stages) |
OKB-154
(KBKhA)
|
A.
D. Konopatov
|
Voronezh
|
|
The
models of the UR-200 (left) and UR-100 missiles made to the same scale,
give the idea about their relative size. Copyright © 2000 by Anatoly
Zak
The

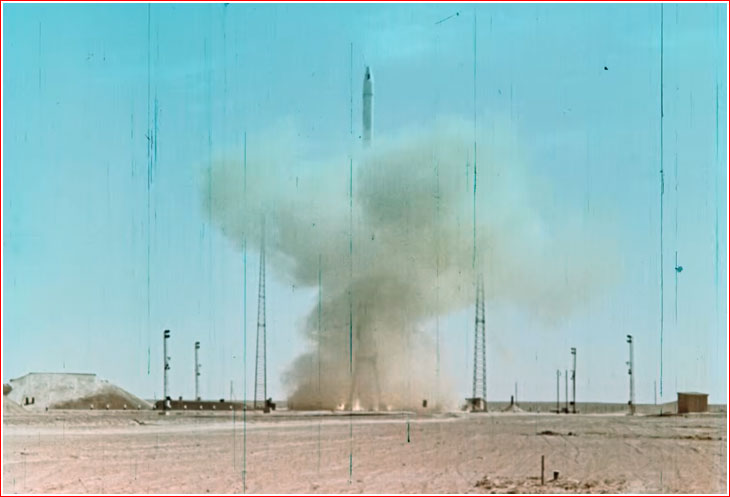

test launch of the UR-100 missile from the surface pad in Baikonur. Credit:
NPO Mash
The
UR-100UTTKh missile. Credit: NPO Mash
The
scale model of the UR-100 transporter and storage container. Copyright
© 2000 by Anatoly Zak
The
mockup of a silo facility for the UR-100 missile. Copyright © 2000
by Anatoly Zak
|
