Russian-Ukrainian Dnepr to fly in the midst of political crisis

As Russia and Ukraine are locked in the most serious political crisis and the military confrontation since the end of the USSR, specialists from both sides launched a converted Soviet ballistic missile originally built in Ukraine.

Previous chapter: The 19th mission of the Dnepr rocket

Bookmark and Share

The liftoff of the 20th Dnepr rocket, took place as scheduled on June 19, 2014, at 23:11:11 Moscow Summer Time (3:11 p.m. EST) from an underground silo facility No. 370/13 in the Dombarosvsky ICBM deployment area in southern Russia.

The rocket carried the KazEOSat-2 (DZZ-MRES) remote-sensing satellite for the imaging of the Earth surface, which was built by the European consortium Airbus Defense and Space for the government of Kazakhstan and a cluster of 36 secondary payloads for customers from 17 countries, including Deimos-2, Hodoyoshi-3, Hodoyoshi-4, BugSat-1, SaudiSat-4, AprizeSat-9, AprizeSat-10, UniSat-6, Tigrisat, AeroCube 6, ANTELSAT, Lemur-1, BRITE-CA 1, BRITE-CA 2, NanosatC-Br1, Duchifat-1, Perseus-M1, Perseus-M2, QB50P1, QB50P, Tablesat-Avrora, 11 satellites Flock-1c, POPSAT-HIP 1, PACE, PolyITAN, DTUSat-2.

Flight profile

Following the blastoff from its launch silo, the Dnepr headed south to enter an orbit with an inclination 97.9 degrees toward the Equator. After separation of two lower stages of the launch vehicle, the payload section turned 180 degrees and continued its ascent with the help of low-thrust engines. The top section of the payload fairing then separated allowing payloads to be released from the back side of the carrier vehicle one after another around every two seconds, while the third stage continued the powered flight between 950th and 972nd seconds of the flight.



Release sequence in the 20th Dnepr mission:

Satellite
Time from launch
BugSat-1
950 seconds
Tablesat-Avrora
952 seconds
Deimos-2
954 seconds
A platform and five QuadPack carriers
956 seconds
KazEOSat-2
958 seconds
Hodoyoshi-4
960 seconds

Hodoyoshi-3

961 seconds

SaudiSat-4

962.5 seconds

UniSat-6

964 seconds

AprizeSat-9

965.5 seconds

AprizeSat-10

967 seconds

BRITE-Toronto

970 seconds

BRITE-Montreal

972 seconds




Payloads in Dnepr's 20th mission:

Satellite
Mass
Mission
Owner, other info
KazEOSat-2 (DZZ-MRES)
177 kilograms
Remote-sensing
Government of Kazakhstan
Deimos-2
300 kilograms
Remote-sensing
Spain, Elecnor-Deimos
SaudiSat-4
100 kilograms
Science
Saudi Arabia
Hodoyoshi-3
58 kilograms
Remote-sensing
Japan
Hodoyoshi-4
64 kilograms
Remote-sensing
Japan
Tablesat-Avrora
25 kilograms
Remote-sensing
Russia, Sputniks

BRITE-CA 1 (Toronto)

7 kilograms

Astrophysics

Canada, XPOD systems

BRITE-CA 2 (Montreal)

7 kilograms

Astrophysics

Canada, XPOD systems

AprizeSat-9

14 kilograms

Communications

USA, SpaceQuest

AprizeSat-10

14 kilograms

Communications

USA, SpaceQuest

BugSat-1

23 kilograms

Remote-sensing

Argentina, Satellogic S.A.

UniSat-6*
26 kilograms
Experimental
University of Rome, La Sapienza, Italy
  • Tigrisat
  • Lemur 1
  • ANTELSAT
  • AeroCube6

  • Sapienza University of Rome with Iraki students.
  • NanoSatisfi Inc.
  • Uruguay
  • Aerospace Corporation

QuadPack 1*

-

-

Netherlands, ISIS

  • QB50P1
  • QB50P2
  • NanosatC-Br1
  • DTUSat-2
  • POPSAT-HIP 1
  • PACE
  • Duchifat-1

-

-

  • Belgium
  • Belgium
  • Brazil
  • Denmark
  • Singapore
  • Belgium, Taiwan
  • Israel

QuadPack 2*

-

-

Netherlands, ISIS

  • PolyITAN
  • Flock-1c (1)
  • Flock-1c (2)
  • Flock-1c (3)

-

-

  • Ukraine
  • USA
  • USA
  • USA

QuadPack 3*

-

-

Netherlands, ISIS

  • Flock-1c (4)
  • Flock-1c (5)
  • Flock-1c (6)
  • Flock-1c (7)

-

-

  • USA
  • USA
  • USA
  • USA

QuadPack 4*

-

-

Netherlands, ISIS

  • Flock-1c (8)
  • Flock-1c (9)
  • Flock-1c (10)
  • Flock-1c (11)

-

-

  • USA
  • USA
  • USA
  • USA

QuadPack 5*

-

-

Netherlands, ISIS

  • Perseus-M1
  • Perseus-M1

-

-

  • USA
  • USA

*Payloads designed to deploy other satellites which are marked with bullet points.

From the publisher: Please help to keep this site open and current! The pace of our development depends primarily on the level of support from our readers.

Donate



Next chapter: Dombarovsky site

Bookmark and Share

Page author: Anatoly Zak; Last update: June 19, 2014

All rights reserved

Book

PICTURE GALLERY

Kazeosat

KazEOSat-2 (DZZ-MRES) will serve as a main payload during Dnepr's 20th mission. Credit: Kosmotras


Deimos-2

Deimos-2 satellite. Credit: Kosmotras


SaudiSat-4

SaudiSat-4. Credit: Kosmotras


Hodoyoshi

Hodoyoshi-3 and 4 satellites. Credit: Kosmotras

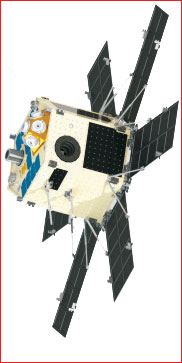

Tablesat

Tablesat-Avrora. Credit: Kosmotras
