Soyuz launches Russian-built satellite for Iran

A Soyuz rocket orbited an imaging satellite for the Iranian government on August 9, 2022, marking the departure of the Russia's workhorse space delivery system from the Western launch market after Moscow's full-scale invasion of Ukraine.


launch

The Khayam mission at a glance:

Primary payload Khayam (Khayyam)
Launch vehicle Soyuz-2-1b No. Ya15000-055 / Fregat No. 123-06
Payload fairing 81KS No. Ya15000-045
Launch site Baikonur, Site 31, Pad No. 6
Launch date and time 2022 Aug. 9, 08:52:38.281 Moscow Time (actual)
Mission status Success

SUPPORT THIS PROJECT!

Donate

Mission history

The Soyuz rocket used in the Khayam mission was intended for a OneWeb launch, however the Kremlin's escalation of the war against Ukraine on Feb. 24, 2022, made the launch impossible.

Instead, the available Soyuz rocket was re-allocated for the launch of an optical imaging satellite likely developed at Moscow-based VNIIEM enterprise. This particular spacecraft was offered to the government of Iran for observations of the Earth's surface, first of all for the purposes of military reconnaissance.

The Khayam satellite reached the launch pad on the heels of Putin's visit to Teheran where Russia and Iran discussed military and economic cooperation.

Secondary payloads

Although Roskosmos did not release any imagery showing preparations of the Khayam satellite and its hitchhiker payloads, their arrangement was probably similar to the planned launch configuration of the South-Korean CAS-500-2 satellite and its secondary payloads targeting near-polar sun-synchronous orbit.

The primary payload from South Korea was expected to be accompanied by a cluster of small satellites from a number of international customers, including Japan-based Axelspace Corporation planning to deliver four GRUS observation satellites in addition to several previous satellites launched on Soyuz. A small satellite from Catalonia was also expected to fly. A total of 38 satellites from 18 countries had apparently been booked for that flight in 2022.

However, after the full-scale invasion of Ukraine on Feb. 24, 2022, foreign customers quit their participation in the mission. As a result, for the first time, the secondary payload cluster on a commercial Soyuz launch was composed exclusively of Russian-built payloads:



Summary of secondary payloads aboard the Soyuz launch on Aug. 9, 2022:

No

Spacecraft

Developer

Mission

1

ReshUCube

SibGU

Remote-sensing camera and reconfigurable space lab with a set of electronic sensors and avionics components

2
Kuzbass-300 SXC3-218 KUZSTU (based on OrbiCraft-Pro SXC3)
Kuznetsk GTU university
Fire-detection camera, voice and image transmission
3
Vizard-SS1 (SXC3-215 VIZARD)
OOO NIS, OOO Vizard, Moscow Schools No. 1522, 2086
AIS and KINEIS for tracking vessels and other platforms in the Arctic Ocean
4
SXC3-21 UTMN
Tyumen State University, TyumGU
Oil-spill tracking camera for Arctic region based on OrbiCraft. Reentered on May 9, 2024.
5
CUBESX-HSE-2
NIU High Economics School, VShE
Arctic sea vessel tracking, testing of VERA plasma engine. Reentered on May 9, 2024.
6
SXC3-217 SIREN
NIU Belgorod State University, BelGU
Capsule with lilac seeds in gel solution equipped with cameras and light sources. Reentered on July 6, 2024.
7
KAI-1
Kazan National Technical University, KNITU-KAI
Panoramic cameras, thermometer, 145/435 MHz amateur radio transmitter (call sign RS26S)
8
Polytech Universe-1
School of applied physics and space technology at Institute of Electronics and Telecommunications in St. Petersburg
Monitoring of electromagnetic radiation of the Earth surface in multiple frequencies
9
Polytech Universe-2
10
Geoskan-Edelweis
Geoskan
Geoskan-3U platform with gas engine from OKB Fakel, navigation receiver from Elvis company
11
Skoltrech-B1
Skoltekh space systems lab, NIIYaF MGU
Inter-satellite communications module and gamma detectors from NIIYaF MGU for triangulation of gamma-bursts with multiple satellites, optical cameras for remote-sensing
12
Skoltrech-B2
13
SXC3-2110 Cyclops (OrbiCraft-Pro)
Ustinov Voenmekh BGTU
Stabilization and positioning for optics, remote-sensing, power-storage testing, lunar rover technology testing, material and electronics degradation studies
14
SXC3-214 MIET-AIS, (OrbiCraft-Pro)
MIET
AIS. Reentered on June 9, 2024.
15
SXC3-219 ISOI Medeks
ISOI RAN
Hyper-spectral remote-sensing camera. Reentered on June 5, 2024.
16
Monitor-1 (OrbiCraft-Pro)
NIIYaF MGU
KODIZ combined radiation detector. Reentered on March 23, 2024.

As of August 2022, Glavkosmos, the commercial arm for the Roskosmos State Corporation, still advertised four Soyuz rocket launches heading to the 550-600-kilometer sun-synchronous orbit with Cubesat-type satellites. The most immediate launch in the first or second quarter of 2023 was listed as fully booked, while three more flights in the third and fourth quarter of 2023 and one in the third or fourth quarter of 2024 were still available for micro-sats.

Launch campaign

Resurs-P3

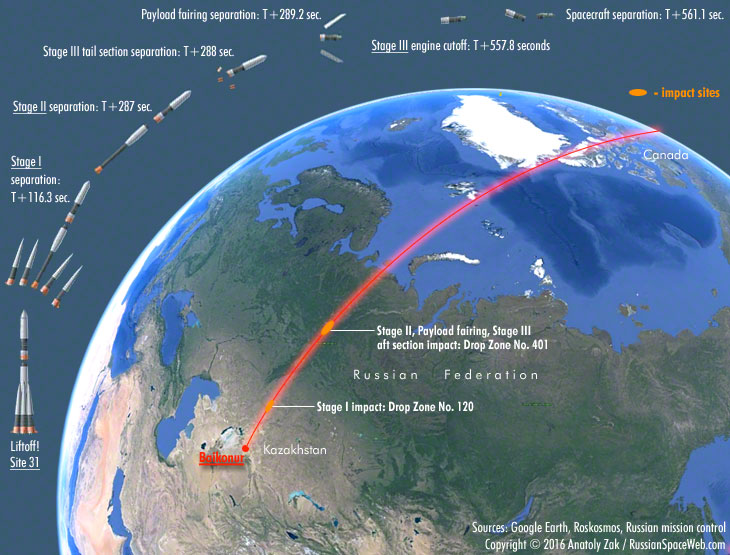

The Khayam orbital ascent profile and ground track likely resembled that of Resurs-P satellites.


The final assembly of the Soyuz launch vehicle with the Khayam satellite was completed in Baikonur on August 4, 2022, and the next morning, the rocket was rolled out to Pad No. 6 at Site 31. On August 8, the newly appointed head of Roskosmos arrived at Baikonur to personally watch the launch.

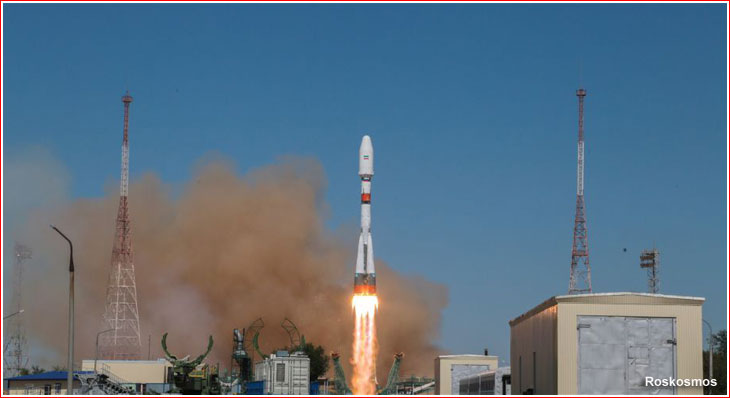

drop zones A Soyuz-2-1b rocket with a Fregat upper stage carrying the Khayam satellite lifted off on Aug. 9, 2022, at 08:52 Moscow Time (1:52 a.m. EDT).

The launch vehicle performed a largely routine powered ascent to an initial orbit with its three stages. However unlike most east-bound launches from Baikonur, remote-sensing missions normally turn north to align its ground track with a target orbit almost perpendicular to the equatorial plane of our planet. As a result, the Soyuz rocket drops the four boosters of the first stage in Northern Kazakhstan near the border with Russia, while the core booster of the second stage should impact the Ural Region of Russia.

After accelerating the payload section to a nearly orbital velocity, the third stage separates from the Fregat space tug and begins reentry over the Arctic Ocean. Five minutes after separation, Fregat fires its engine for five minutes, entering an initial transfer orbit.

The stage then coasts for nearly 45 minutes before another maneuver lasting less than 1.5 minutes. The Fregat's second engine firing forms a slightly elliptical orbit with an average altitude of around 500 kilometers intended for the primary payload. The main spacecraft is ejected from the Fregat's adapter around 1.5 minutes after the engine shutdown and soon thereafter, the free-flying satellite should establish contact with mission control.

After another half an hour, Fregat initiates the second dual maneuver to climb another 100 kilometers to a nearly circular orbit. It is used as the destination for secondary payloads.

At least some of the satellites can be released over Antarctica before coming in contact with Russian ground stations in Skolkovo near Moscow 35 minutes later.

Short time after the last payload jumps off Fregat, the space tug usually performs its final maneuver lasting nearly two minutes. It puts the stage on a destructive plunge into the Earth's atmosphere over the Pacific Ocean.

Following the launch, one of the objects associated with the Khayam mission was tracked in the near-circular orbit with an altitude of around 490 kilometers and an inclination 97.44 degrees toward the Equator. It was confirmed to be the Khayam satellite after maneuvers to a slightly higher orbit around Nov. 21, 2022. The spacecraft was then seen periodically adjusting its orbit until Dec. 9, 2023, when it started losing altitude again.





insider content

Bookmark and Share


Page author: Anatoly Zak; last update: July 8, 2024

Page editor: Alain Chabot

All rights reserved



insider content



Dzhalali

Head of Roskosmos Yuri Borisov met Iranian ambassodor to Moscow Kazem Dzhalali just days before the launch of the Iranian satellite on a Soyuz rocket. Credit: Roskosmos


liftoff

Soyuz rocket rolls out to launch pad in Baikonur. Click to enlarge. Credit: Roskosmos


liftoff

Soyuz rocket lifts off from Baikonur on Aug. 9, 2022. Click to enlarge. Credit: Roskosmos


khayam

A known depiction of the Khayam satellite.
