Cygnus cargo ship

Developed by the Orbital Sciences Corporation, OSC, (now Orbital ATK), the Cygnus cargo ship became an unglamorous replacement for the Space Shuttle, or at least for its role of delivering cargo to the International Space Station, ISS.

Previous chapter: Antares rocket


cygnus

The Cygnus spacecraft at a glance:

Liftoff mass
6,173 kilograms
Ascent cargo mass
2,425 - 3,515 kilograms
Descent cargo mass
1,687 kilograms
Onboard propellant mass
800 kilograms
Pressurized volume
27 cubic meters
Length
6.39 meters
Power supply system
Two fixed "UltraFlex" solar panels, ZTJ gallium arsenide cells
Power supply
3,500 Watts (32 Volts in the main bus)
Power for hosted payloads
1,300 Watts
Battery capacity
20,262 Watt-hours
Onboard propellant
Nitrogen Tetroxide and 2H4/Mon-3 or N2H4
Flight duration
90 days (extendable up to a year after primary mission)
Docking system
Node 2 Common Berthing Mechanism, CBM
Launch vehicle
Antares-230
From the publisher: Pace of our development depends primarily on the level of support from our readers!
Donate

CRS contract

For the CRS-1 contract Orbital ATK promised to deliver approximately 30,000 kilograms of cargo to the ISS, and dispose of ISS waste, using Cygnus spacecraft. In 2016, Orbital ATK quoted six planned missions to the ISS through 2018 and under a second NASA contract -- CRS2 -- for another six missions, beginning in 2019. According to the company, a total of more than 50 tons of cargo would be delivered to the ISS from 2013 to 2024.

In addition to its cargo-delivery role, Orbital ATK pitched the vehicle to commercial users for a variety of tasks, such as launching small satellites and conducting experiments in microgravity.

Cygnus design

Cygnus

Astronauts onboard the International Space Station use a robotic arm to attach the first Cygnus cargo ship to the US segment of the station in 2013. Credit: NASA


cugnus

An upgraded version of the Cygnus cargo ship.


The Cygnus cargo ship can accommodate up to 3,515 kilograms of supplies in its Pressurized Cargo Module, PCM. The pressurized section is manufactured by Thales Alenia Space in Turin, Italy, and based on the company's Multi-Purpose Logistics Module, MPLM, which was carried in the Space Shuttle's cargo bay to resupply the International Space Station.

The same company also built similar barrel-shaped structures for the Space Shuttle's Spacelab and Spacehab modules and for the European Columbus module.

For the first three CRS missions, a standard PCM was employed to carry up to 2,300 kilograms of cargo. The
enhanced PCM designed to carry up to 3,500 kilograms of cargo was to be used in CRS missions four through eight.

The service module for the spacecraft is manufactured by Orbital ATK in Dulles, Virginia. The service module incorporates avionics systems from Orbital ATK’s flight-proven LEOStar and GEOStar satellite series. The ship's propulsion and power systems were also borrowed from GEOStar communications satellites.

To control Cygnus flights in orbit, Orbital ATK set up mission control in Dulles, Va, which works in cooperation with NASA's main mission control at Johnson Space Center, JSC, in Houston, TX.

Flight profile

After several days in solo flight, Cygnus automatically approaches the ISS up to a distance of 12 meters with the help of satellite navigation and laser imaging. The ISS crew then uses the station's robotic arm to grab the ship and dock it to the US segment.

The ship can remain attached to the ISS for a period of up to 90 days, after which it is released in orbit for a destructive reentry into the Earth's atmosphere.



A complete list of Cygnus missions:

Launch date
Time of launch
Payload
Variant
Status
1
2013 April 21
5 p.m. EDT
Cygnus mass simulator, DOVE-1, PhoneSat v1a, PhoneSat v1b, PhoneSat v1c
Antares-110
Success
2
2013 Sept. 18
10:58:02 a.m. EDT
Cygnus Orb-D1 (COTS Demo)
Antares-110
Success
3
2014 Jan. 9
1:07:05 p.m. EST
Cygnus (Orb-1)
Antares-120
Success
4
2014 July 13
12:52 p.m. EDT
Cygnus Orb-2 (CRS-2)
Antares-120
Success
5
2014 Oct. 28
6:22:38 p.m. EDT
Cygnus Orb-3 (CRS-3)
Antares-130
Failure
6
2015 Dec. 6
4:44:57 p.m. EST
Cygnus OA-4 (CRS4) (enhansed)
Atlas-5 (401/AV-061)
Success
7
2016 March 22
11:05 p.m. EDT
Cygnus OA-6 (CRS6) (enhansed)
Atlas-5 (401/AV-064)
Success
8
2016 Oct. 17
7:45:40 p.m. EDT
Cygnus CRS OA-5 (Alan Poindexter)
Antares-230
Success
9
2017 Nov. 12
7:19:55 a.m. EST
Cygnus CRS-8 OA-8
Antares-230
Success
10
2018 May 21
4:44:09.7 a.m. EDT
Cygnus OA9 (CRS-9)
Antares-230
Success
11
2018 Nov. 17
4:01 a.m. EST
Cygnus-10 (CRS-10, NG-10, John Young)
Antares-230
Success
12 2019 April 17 4:46 p.m EDT Cygnus NG-11 (CRS-11, Roger Chaffee)
Antares-230
Success
13 2019 Nov. 2 9:59 a.m. Eastern Time Cygnus NG-12 (CRS-12, Alan Bean)
Antares-230+
Success
14 2020 Feb. 15 3:21:04.9 p.m. EST Cygnus NG-13 (CRS-13, S.S. Robert Lawrence, Jr.)
Antares-230+
Success
15 2020 Oct. 2
9:16:14 p.m. EDT
Cygnus NG-14 (CRS-14, S.S. Kalpana Chawla)
Antares-230+
Success
16 2021 Feb. 20 12:36 p.m. EST Cygnus NG-15 (CRS-15, S.S. Kathrine Johnson)
Antares-230+
Success
17 2021 Aug. 10 6:01:09.300 p.m. EDT Cygnus NG-16 (CRS-16, Onizuka)
Antares-230+
Success
18 2022 Feb. 19 12:40 p.m. EST Cygnus NG-17 (CRS-17, S.S. Piers Sellers)
Antares-230+
Success
19
2022 Nov. 7
5:32:42 a.m. EDT
Cygnus NG-18 (CRS-18, S.S. Sally Ride)
Antares-230+
Success
20 2023 Aug. 1 8:31:14 p.m. EDT Cygnus NG-19 (CRS-19, S.S. Laurel Clark)
Antares-230+
Success
21 2024 Jan. 30 12:07 p.m. EST
Cygnus NG-20 (CRS-20, S.S. Patricia (Patty) Hilliard Robertson)
Falcon-9
Success
22 2024 Aug. 4 11:02 a.m. EDT Cygnus NG-21 (S.S. Francis R. "Dick" Scobee)
Falcon-9
Success



This page is maintained by Anatoly Zak; Last update: August 6, 2024

All rights reserved

insider content



cargo

Internal layout of the Pressurized Cargo Module, PCM, for the Cygnus spacecraft. Credit: Orbital


liftoff

An Antares rocket lifts off in on July 13, 2014, with the CRS Orb-2 cargo supply mission to the ISS. Click to enlarge. Credit: BIll Ingalls / NASA


cygnus

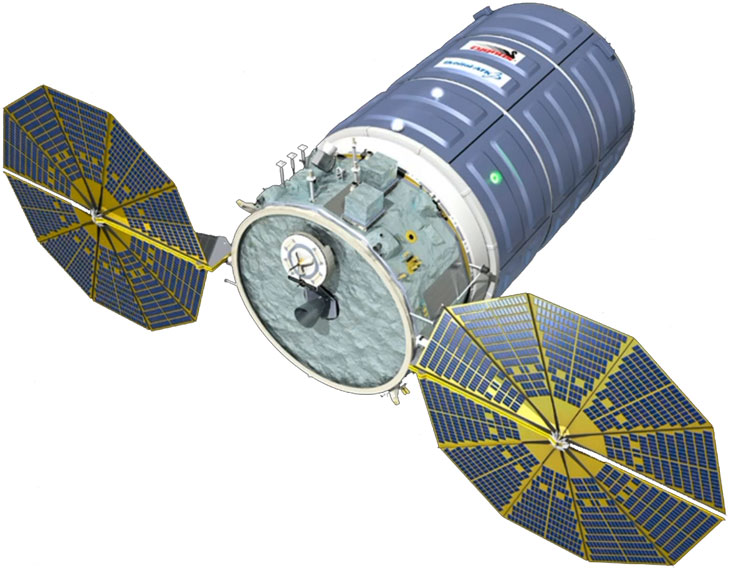

Original version of Cygnus spacecraft. Credit: NASA

cygnus

Orbital ATK's Cygnus cargo craft is released from the International Space Station in this June 14, 2016, photograph by ESA astronaut Tim Peake. Once Cygnus reached a safe distance, ground controllers at NASA's Glenn Research Center initiated the sequence for an experiment design to better understand how fire spreads in a microgravity environment. Credit: NASA
