The 5M variant to fix Angara-5's ills

In 2017, Russian space officials identified another version of the Angara-5 rocket, designated Angara-5M (industrial designation 372RN24), which was intended to address the latest obstacles on the way of the new-generation rocket family to the commercial market.

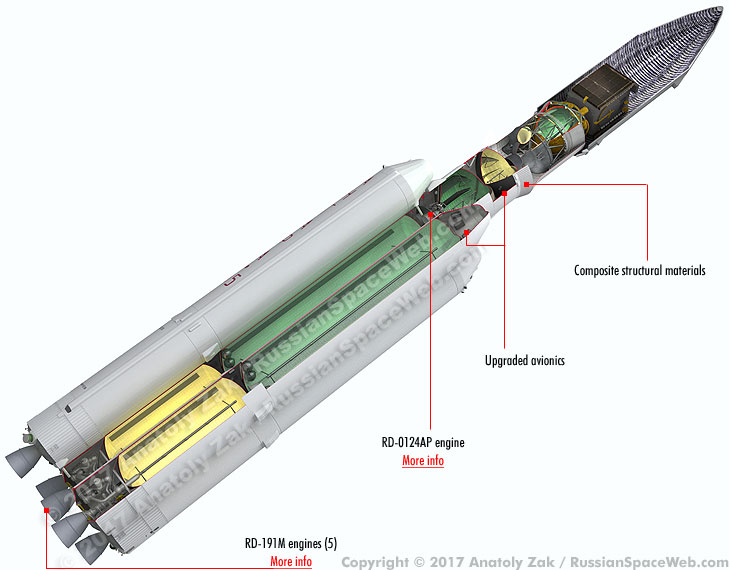

Possible upgraded features of the Angara-5M rocket.

From the publisher: Pace of our development depends primarily on the level of support from our readers!


Besieged on several fronts

The first test flight of the Angara-5 rocket in December 2014, marked a major milestone for the long-awaited family of new-generation rockets in Russia, but it also demonstrated serious problems. The Angara-5 launcher was rumored to be prohibitively expensive for commercial users and its payload delivery capabilities turned out to be around 22 tons to the low Earth's orbit instead of the projected 24 tons. There were reports that Angara-5 could not compete in cost and payload with its veteran predecessor -- the Proton rocket, ironically, built by the same manufacturer -- GKNPTs Khrunichev in Moscow.

The introduction of the Angara-5 was further complicated by production issues, delaying the rocket's second launch for years. In the meantime, GKNPTs Khrunichev looked at various options to salvage the situation.

In 2017, the Russian government promised the introduction of the Angara-5M variant, as a cheaper, modified incarnation of Angara-5. The rocket would be customized for launching unmanned satellites and based in Vostochny.

Most importantly, the 5M variant would probably be equipped with modified RD-191M engines on the first and second stages, which are capable of a 10-percent increase in thrust in comparison to the existing RD-191 engines.

The more powerful engines would enable Angara-5M to deliver up to 27.1 tons of payload into the low Earth orbit.

The upgrades to the Angara-5 could also include the introduction of composite materials in the rocket's structure and a new flight control system with domestically built components. The vehicle's URM rocket modules could also be equipped with backup pneumatic and hydraulic hardware to improve the reliability and safety of the propellant supply system.

As of 2017, Angara-5M was promised to make its first flight from a brand-new launch pad in Vostochny in 2021. Most of the improvements of the Angara-5M variant will then migrate to the more powerful Angara-5V vehicle.

The competition pressure

The public pronouncements about the Angara-5M variant coincided with the decision of the Russian government to fund the development of the new medium-class rocket, which could also serve as a basis for a five-booster super-heavy rocket. Theoretically, a three-booster combo of the same new rocket could also form an intermediate vehicle comparable to Angara-5. The development of the new rocket family was expected to be delegated to RKTs Progress based in the city of Samara, the main competitor of GKNPTs Khrunichev within the Russian rocket industry.

As a result, the Angara family faced the potential prospect of becoming obsolete even before it had a chance to enter service. Not surprisingly, the development of the Angara-5M variant would be critical for the competition at home and abroad.

Much for the Angara-5M success would depend on the commitment of the Russian government to building a new launch pad for Angara-5 in Vostochny, because its existing launch facility at the military launch base in Plesetsk was located too far to the north for cost-effective missions to the geostationary orbit. That was the main reason, Roskosmos had no intention launching commercial payloads on the Angara-5 from Plesetsk and, instead, planned to ship the first 5M variant directly to Vostochny. However, as of the middle of 2017, Roskosmos was yet to begin the development of the new launch facility or even choose a team of contractors for this costly project in Vostochny. Moreover, at the time of the Angara-5M announcement, the second launch of Angara-5 had apparently slipped to the end of 2018 at the earliest.

According to an article by the former Designer General at GKNPTs Khrunichev Aleksandr Medvedev published in the Kosmonavtika i Raketstroenie magazine in 2018, the first launch of Angara-5M rocket from Vostochny was expected in 2025. According to the publication, more advanced manufacturing methods could help reduce the cost of Angara-5M vehicle by approximately 20 percent compared to the price tag of its experimental predecessors.

In June 2020, he head of KB Salyut Sergei Kuznetsov said that the first Angara-5 rocket for Vostochny was in production and that the second Angara vehicle slated to fly from Russia's new launch site would be a 5M variant.

In February 2021, Chief Designer at NPO Energomash Petr Levochkin announced that during the year, the company had planned to complete the design documentation for the RD-191M engine and begin autonomous tests of its components. The autonomous tests of were completed during 2023 and the first firing of the "tuneup" version of the RD-191M engine was conducted on Jan. 17, 2024. Another test firing was planned for Jan. 24, 2024, according to Levochkin, quoted by TASS.

In August 2022, Deputy Director at KB Salyut said that the design documentation for the Angara-5M variant had been in the final stages of development with blueprints for vehicle's components already finished and the work on the design of mockups underway. The preparation of machinery for prototype testing and setting up the Checkout and Diagnostics Facility at the production plant in Omsk was also underway at the time.



Specifications of the Angara-5M rocket as compared to other members of the Angara-5 family*:

Liftoff mass
780 tons
780 tons
815 - 821.0 tons
Number of stages
Stage I architecture
Four URM-1
Four URM-1
Four URM-1
Stage I propulsion
Four RD-191
Four RD-191M
Four RD-191M
Stage II architecture
One URM-1
One URM-1
One URM-1
Stage II propulsion
One RD-191
One RD-191M
One RD-191M
Stage III architecture
One URM-2
One URM-2M
One URM-3V
Stage III propulsion
Possible upper stages
Payload to low Earth's orbit (200 kilometers, 63.1 degrees)
24.5 tons
26.8 tons***
37.5 tons
Payload to low Earth's orbit (135 by 200-500 kilometers)
20 tons
Payload to geostationary transfer orbit
8.0 / 7.0 tons**
8.0 / 7.0 tons**
12 tons
Payload to geostationary orbit
5.0 / 3.9 tons**
5.2 / 4.1 tons**
7 tons

*As of July 2017; **Depending on the upper stage; ***as of September 2018
