NASA's TransHab inflatable module

At the end of the 1990s, NASA come close to building an impressive inflatable module dubbed TransHab. Although it never got off the ground, the program was one of the inspirations for Russian engineers to initiate their own research into inflatable space structures.

Bookmark and Share

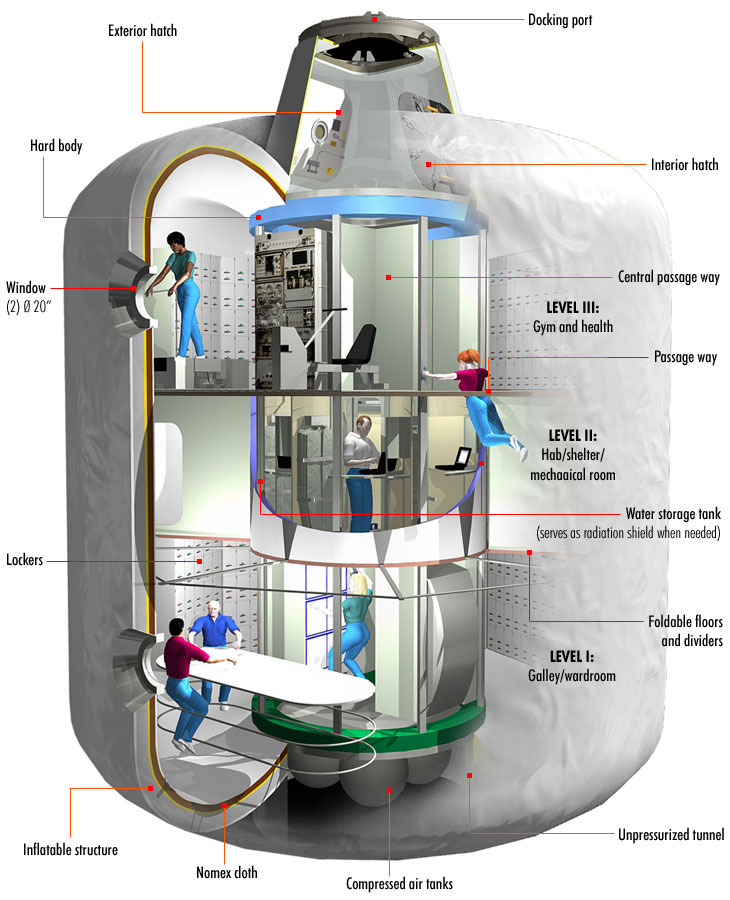

cutaway

Conceived around 1992, at the agency's Johnson Space Center in Houston as the living quarters of a Mars-bound spacecraft, the Transhab would first make a test ride on the Space Shuttle to the International Space Station, ISS. In its folded position, TransHab was sized to completely span the full width of the Shuttle's cargo bay and fill around two thirds of its length.

Officially initiated in 1997, the TransHab program aimed to replace the traditional habitation module on the US segment of the station and test inflatable technology in the process.

In the TransHab concept, a hard-body cylindrical core made of carbon-fiber composite would serve as the backbone for the surrounding multi-layer inflatable structure. On the outside, nearly two dozen flexible expandable layers would form walls almost a feet thick.

In the course of the project, NASA conducted extensive research and development work, including building a full-scale prototype of the inflatable module and conducting structural, thermal and vacuum testing in 1998, as well as trials of the ability of the soft structure to withstand meteoroid strikes.

Unfortunately, due to financial and political problems, the US Congress killed the maverick project in 2000.

Technical specifications of the Transhab module:

Specification
Folded
Expanded
Liftoff mass
13,200 kilograms
13,200 kilograms
Length
11 meters
11 meters
Diameter
4.3 meters
8.2 meters
Volume
?
339.8 cubic meters
